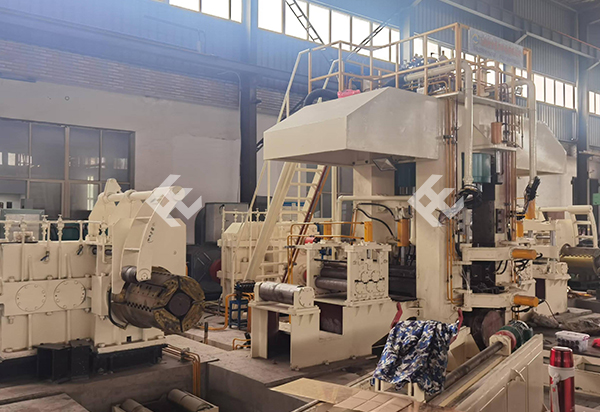

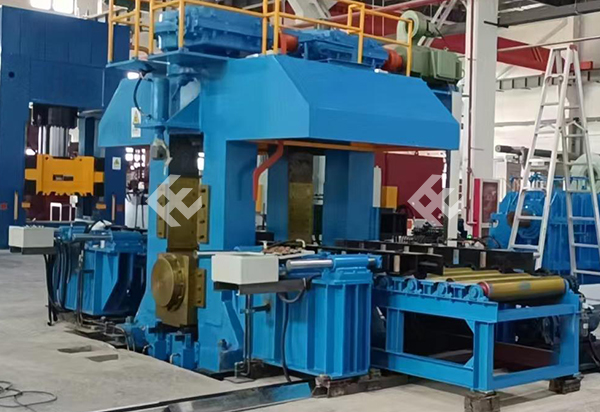

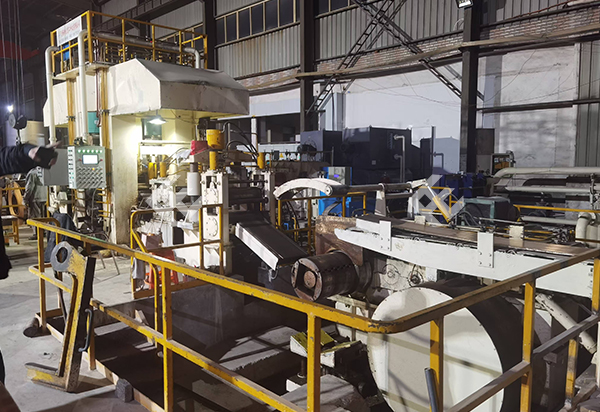

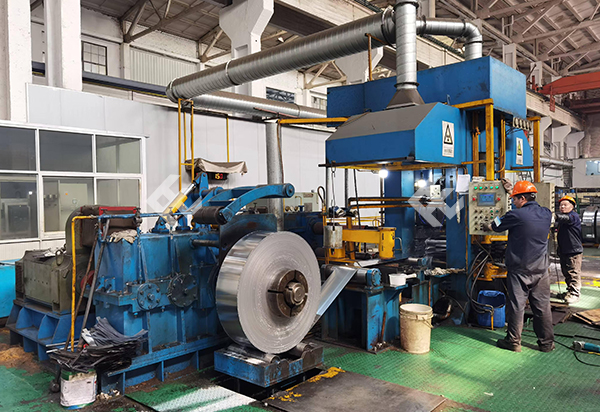

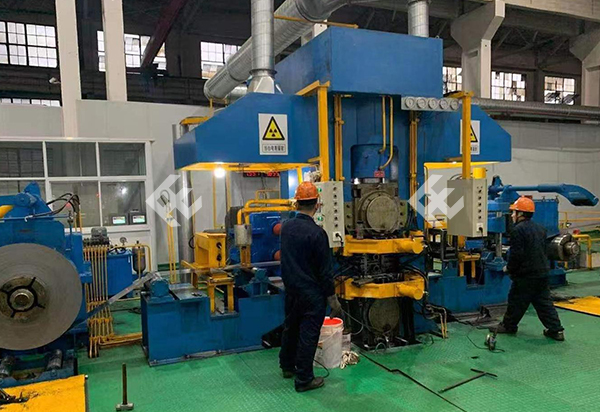

Copper & Aluminium Strip Reversible Cold Rolling Mill
Brief Introduction
This series of units are suitable for medium and fine rolling and finished products of copper, aluminum and alloy steel plates and strips, with many advantages such as high rolling accuracy, high speed and stable tension.
Production Process
This machine consists of winding and unwinding mechanism, main frame, front and rear guide devices, transmission base, hydraulic system, electronic control system and other parts.
Detailed Information
Specifications:
Φ90/Φ350×350、Φ100/Φ360×380、Φ120/Φ460×500、Φ145/Φ460×500、
Φ145/Φ520×550、Φ150/Φ580×680、Φ155/Φ620×750、Φ175/Φ720×850、
Φ180/Φ750×900、Φ182/Φ850×1000
Technical Parameters
| Models | FZ 350 | FZ 450 | FZ 500 | FZ 650 | FZ 750 | FZ 850 | |||||
| Rolling Force | 2800KN | 3000KN | 5000KN | 6000KN | 7500KN | 8500KN | |||||
| Cross Section | 190×280 | 250×350 | 300×380 | 320×420 | 350×450 | 420×520 | |||||
| Pressing System | 270 center S140×6 | 315 center,S160×6 | 360 center,S180×8 | 480 center,S200×10 | 500center,S220×10 | 560 center,S240×10 | |||||
| Main Reducer | ZLY355 | ZLY400 | ZLY450 | ZLY560 | ZLY560 | ZLY630 | |||||
| Pressing Method | Electric | Hydraulic | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic |
