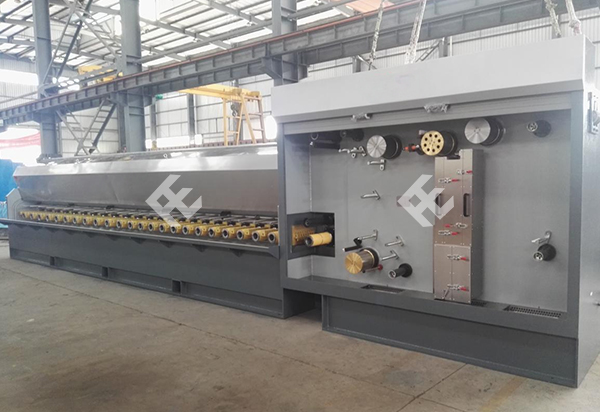

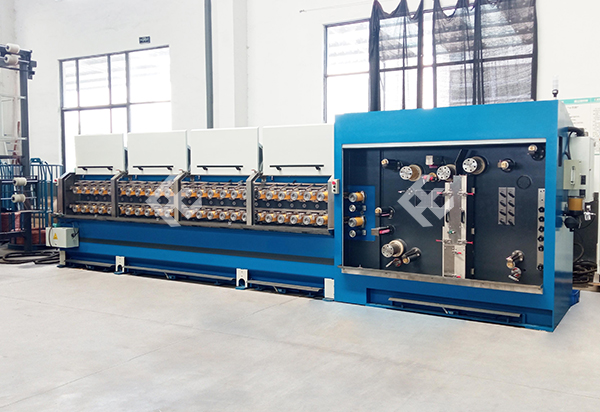

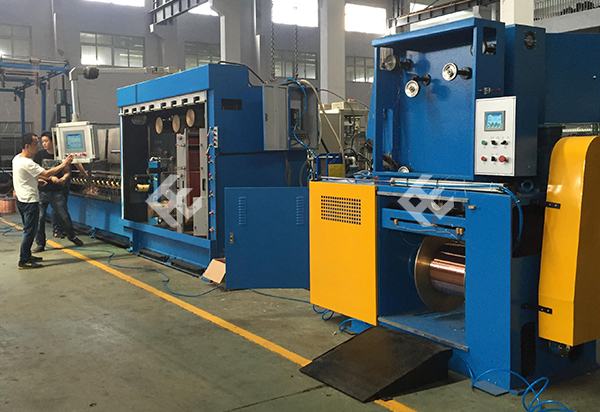

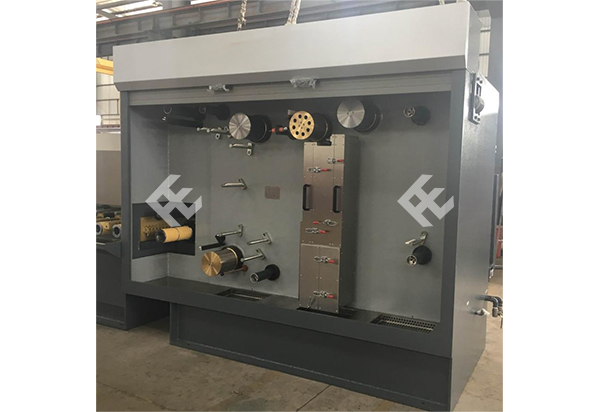

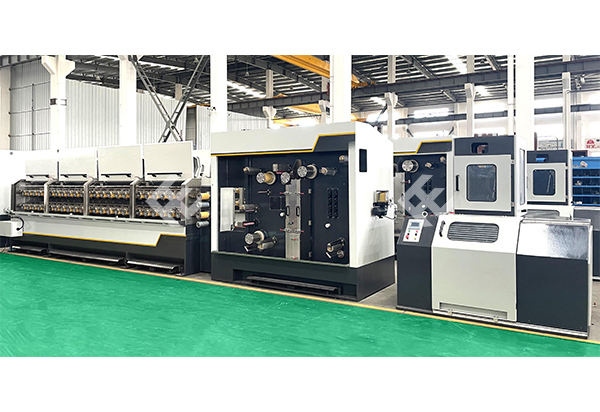

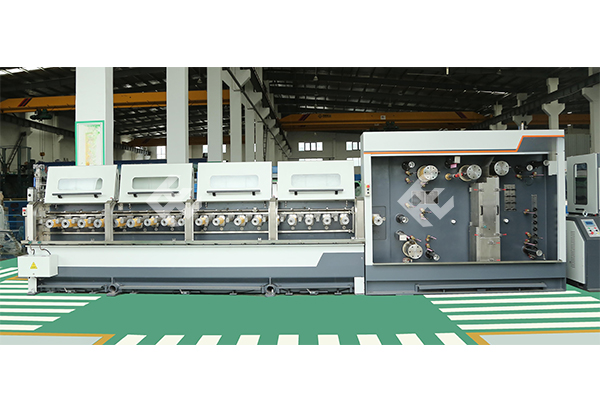

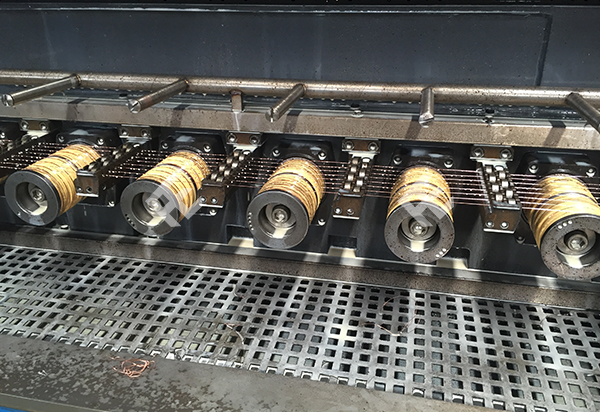

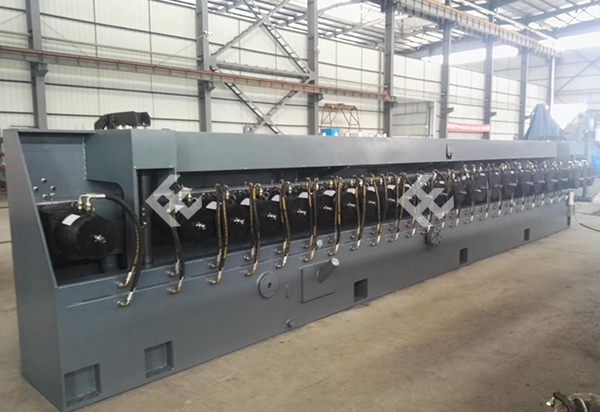

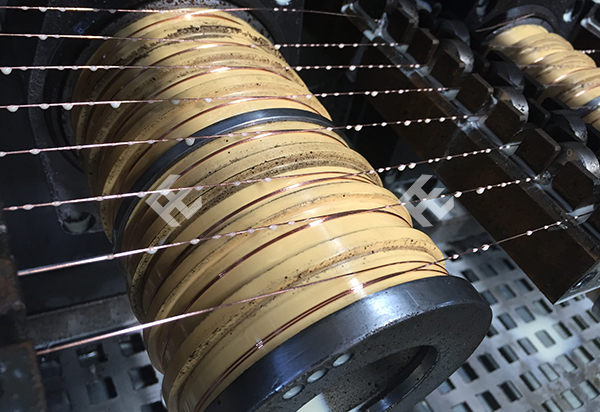

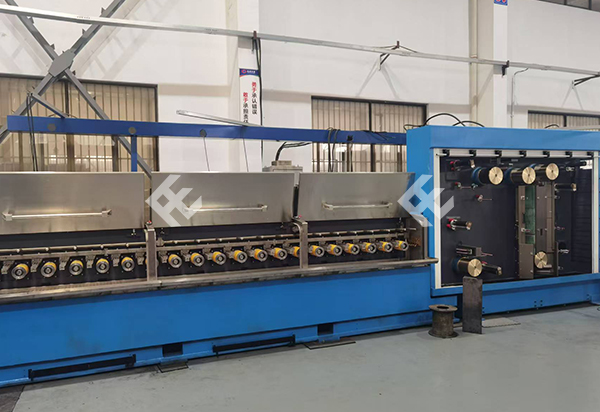

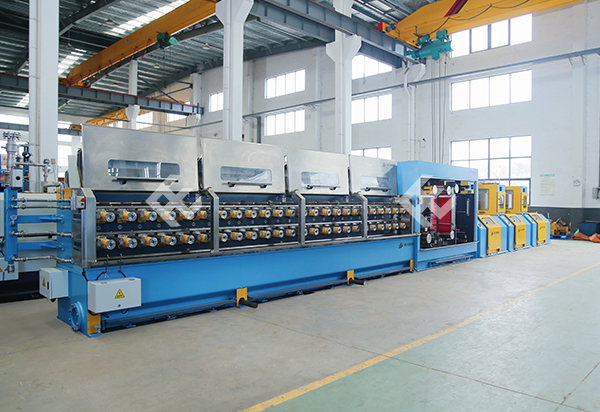

Sliding Type Multi-wire Drawing Machine
Brief Introduction
This series of machine is used to drawing fine Multi-copper wires to smaller sizes.
Detailed Information
Features:
1. High-precision helical gear transmission, unique oil lubrication mechanism, dual motor drive, fast die change system;
2. The wire drawing oil lubrication adopts a strong oil spray design inside the die base. Lubrication is more sufficient, space saving, and easy to operate;
3. The annealing contact copper ring and nickel cylinder are made of special alloy materials to ensure a longer service life;
4. The online annealing control adopts a zero-meter preset voltage design to ensure the stable annealing quality of the wire under the start-up and shutdown conditions.
Technical Parameters
Models | F-DT18/4 | F-DT21/8A | F-DT21/8B | F-DT24/16 | F-DT24/24 |
Applicable materials | Bare copper wire Tinned copper wire | Bare copper wire Tinned copper wire | Bare copper wire Tinned copper wire | Bare copper wire Tinned copper wire | Bare copper wire Tinned copper wire |
| 4 | 8 | 8 | 16 | 24 | |
Inlet dia. | 1.8mm | 1.8mm | 2.60mm | 2.60mm | 2.60mm |
Outlet dia. | 0.25-0.70mm | 0.15-0.50mm | 0.25-0.7mm | 0.16-0.40mm | 0.15-0.40mm |
Dies | 18 | 21 | 21 | 24 | 27 |
| Wire drawing wheel die | 120mm | 120/100mm | 120/100mm | 120/100mm | 120/100mm |
| Control metho | DC/AC | DC/AC | DC/AC | DC/AC | DC/AC |
| Mechanical speed | Max.25m/s | Max.30m/s | Max.30m/s | Max.30m/s | Max.30m/s |
| Wire dia. rang | 0.25-0.60mm | 0.15-0.50mm | 0.25-0.7mm | 0.15-0.40mm | 0.15-0.40mm |
| Contact wheel diameter | 200 | 140/200 | 140/200 | 140/200 | 140/200 |
| Annealing voltag | 60V DC | 60V DC | 60V DC | 60V | 60V |
| Annealing curren | Max.1200A | Max.1200A | Max.2000A | Max.3000A | Max.5000A |
Drawing motor power | 55Kw | 90Kw | 180Kw | 180Kw | 240Kw |
Annealing principle | Resistive DC Annealing | Resistive DC Annealing | Resistive DC Annealing | Resistive DC Annealing | Resistive DC Annealing |
