Straight Line Steel Wire Pulling Machine
Brief Introduction
Straight Line Type Steel Wire Drawing Machine is mainly used for drawing high strength, high performance steel wires, particularly suitable for drawing bead wire, rope making wire,stainless steel wire,welding wire(gas protection welding wire, submerged arc welding wire),alloy wire etc.
Detailed Information
Features:
Reliability: Field bus technology was adopted to electrical control system,all digital control, electrical components are all international famous brand.Electrical control system is stable and reliable operation.
Energy saving: It adopts AC frequency regulator dragging which can reduce the impact of machine commission caused by motor start.
High efficiency: It reduces the failure rate,average high working speed,greatly improve production efficiency.
Technical Parameters
| Type | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 |
| Inlet wire strength (mpa) | ≤1250 | ||||||||
| Drawing Passes | 2-11 | 2-11 | 2-11 | 2-12 | 2-12 | 2-12 | 2-12 | 2.9 | 2.9 |
| Max inlet diameter (mm) | 2.8 | 3.5 | 4.2 | 5.0 | 5.5 | 6.5 | 8 | 10 | 12.7 |
| Min inlet diameter (mm) | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | 1.1 | 1.6 | 2.2 | 2.6 |
| Max speed (m/s) | -25 | -20 | -20 | -16 | -15 | -15 | -12 | -12 | -8 |
| Power (KW) | 7.5-18.5 | 11-22 | 11-30 | 15-37 | 22-45 | 22-55 | 30-75 | 45-90 | 55-110 |
| Drawing materials | Kinds of metal wire: steel wire (high, medium, low carbon wire, stainless steel wire, prestressed wire, bead wire, rubber tube wire, spring steel wire, steel cord steel wire etc), welding wire (gas shielded welding wire, submerged arc welding wires, flux-cored wire etc), alloy wire etc. | ||||||||

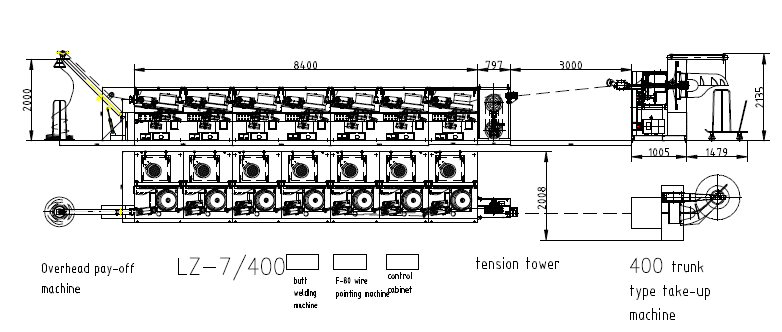

Layout
