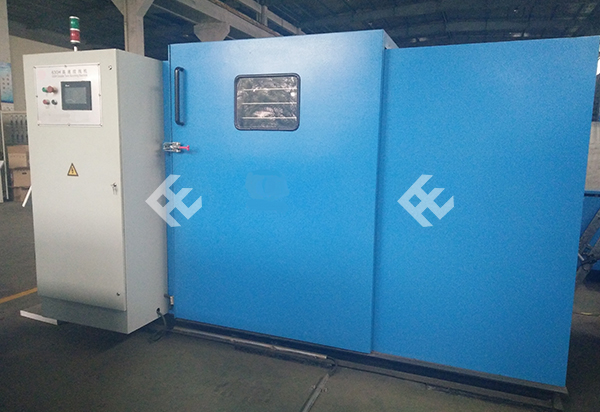

Double Twist Bunching Machine

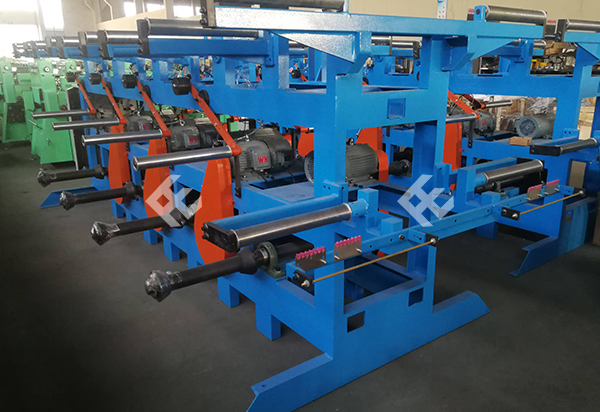

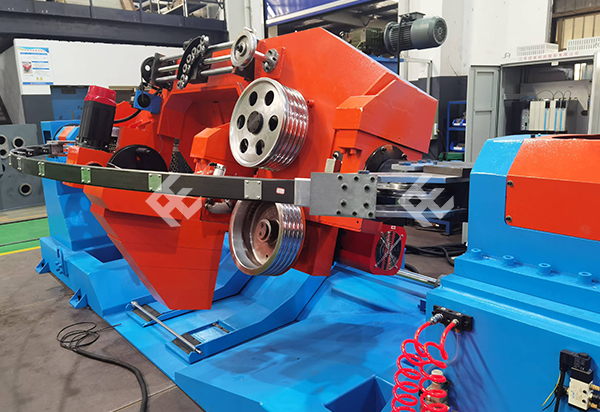

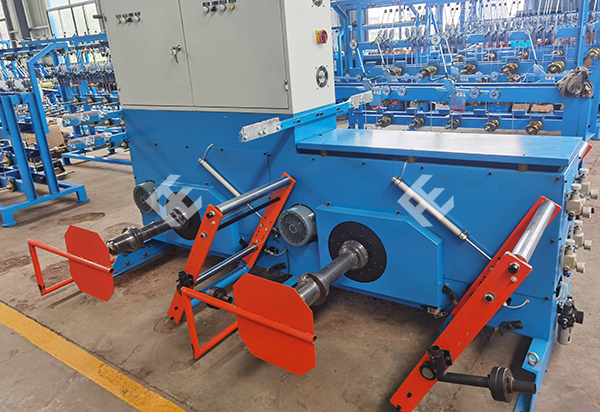

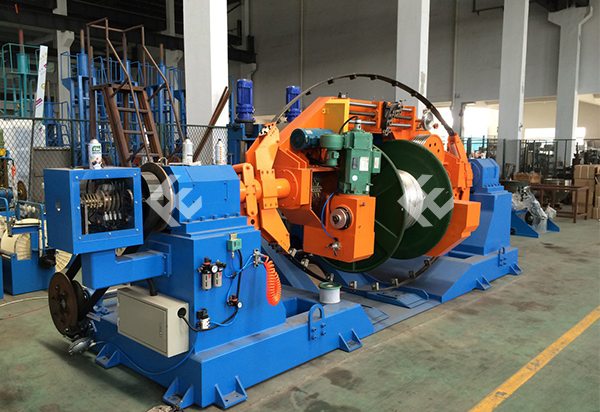

Brief Introduction
The double-twist bunching machine is used to strand aluminum, copper and PVC insulated wires. The machine includes an external rotating compression die structure, which provides the required traction force to compress the conductor. When the conductor is compressed, the stranding machine retracts the wire. A special wire pass reduces the torque between the rotating traction wheel and the take-up reel to ensure a good round conductor.
Detailed Information
Features:
1. The double-twist bunching machine is suitable for stranding copper wire and PVC insulated wire or aluminum wire conductors.
Copper cross section is 16-300mm2, aluminum cross section is 16-400mm2.
2.The machine has fast process speed and high output. It combines the advantages of tubular and frame stranding machines.
Technical Parameters
| Models | FS-630H | FS-800H | FS-1000H | FS-1250H | FS-1600H |
| (Copper) Inlet Dia ∅mm | 0.16-1.00 | 0.38-1.60 | 0.45-2.0 | 1.0-3.0 | 1.2-3.6 |
| Insulated Wire Dia ∅mm | 0.6-1.50 | 1.0-2.5 | 1.0-2.5 | 2.0-6.5 | 2.0-9 |
| Shaft Speed RPM/Max | 2500 | 1200 | 1000 | 800 | 500 |
| Copper Twisting Section Area (mm∅/max) | 4.5 | 8 | 10 | 3-10 | 3-16 |
| Twisting Pitch | 40mm-120mm | 17mm-200mm | 20mm-200mm | 40mm-350mm | 40mm-350mm |
| Finished wire Section Area m㎡/max | 0.14-6 | 0.8-22 | 1.2-38 | 3.5-50 | 10-90 |
| Power Control | All devices are driven by individual motor | ||||
| Electric Control System | PLC control system, operating on touch screen. | ||||
