Horizontal Mica Tape Wrapping Machine
Brief Introduction

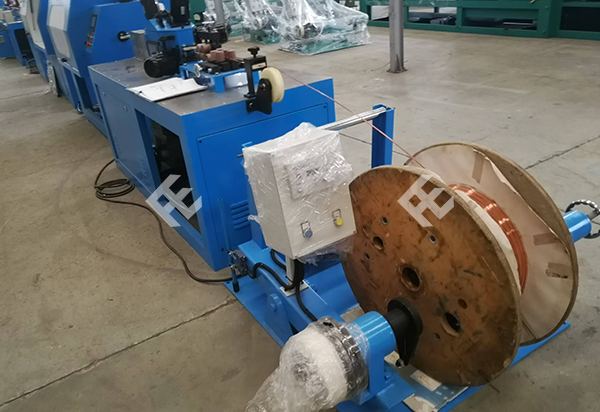

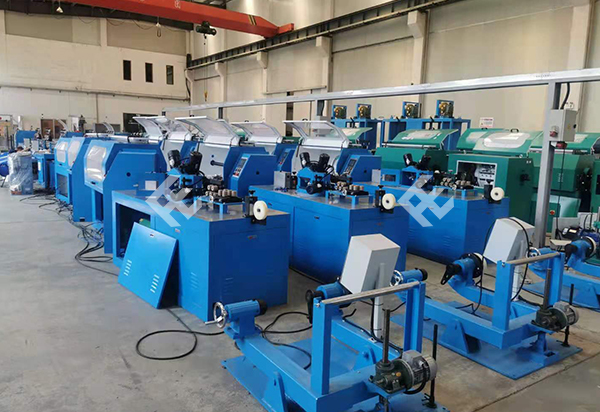

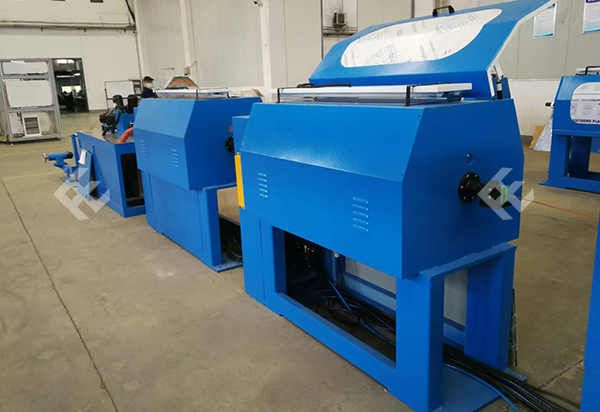

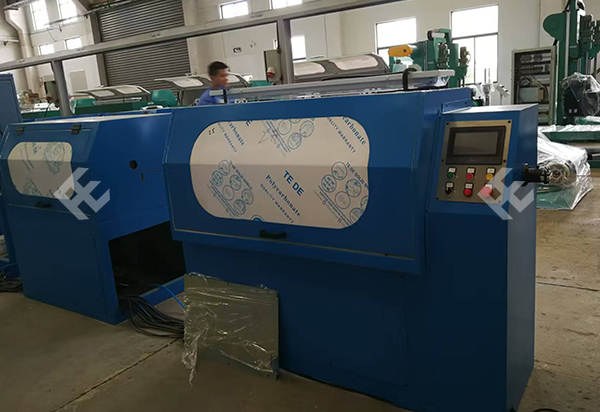

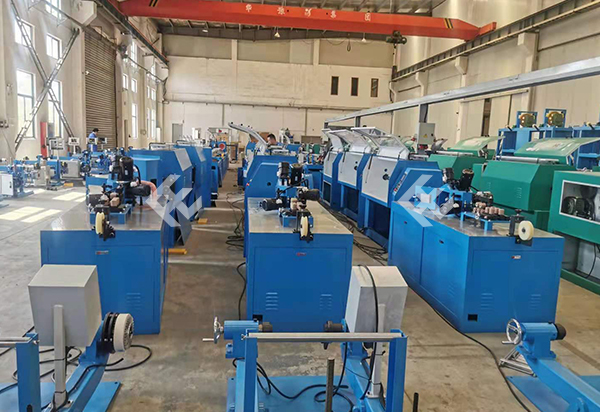

Horizontal Mica Tape Wrapping Machine
Product Introduction: FRB mica tape wrapping machine is a professional equipment for wrapping flame-retardant, fire-resistant and special cables. Each wrapping head is driven and the tension is controlled separately. The equipment has high speed, stable pitch, controllable tape tension and strong stability.
Thin Film High Frequency Sintering Machine
Function The film material is heated to the sintering temperature to complete the sintering process while keeping the film tension stable to ensure sintering quality and production efficiency.
Technical Parameters
Horizontal Mica Tape Wrapping Machine
| Vertical FRB-B series | Horizontal FWRB-B series | |
| Dia | 1-7mm | 2-8mm 或 6-24mm |
| Braiding Direction | Vertical or horizontal | |
| Safe Cover | Fully enclosed visual protective cover | |
| Suit Wrapping Material | Polyester tape, mica tape, non-woven fabric, aluminum foil, etc. | |
| Wrapping Speed | 2800rpm | 2500rpm |
| Pay-off and take-up | 630mm passive pay off | Suit bobbin 630-1600mm |
| Take up inside 800mm (option) | End shaft and gantry and frame type | |
| Outside individual | Customer customised | |
| Traction | Wheel type traction | Track traction |
| Traction Drive Method | AC traction | |
| Traction Tension | Servo motor | |
| Brake | Stop auto | |
| Control Method | Button operate / touch screen | |
Thin Film High Frequency Sintering Machine
| Machine Type | High Frequency Sintering Machine | Traction Machine | 1120 Type, 500kgf Max |
| Machine Range | Copper / Aluminum 5-80mm² | Take Up Machine | Centering Reel Take-up / Bare Rod Take-up (Optional) |
| Wrapping Method | Concentric / Eccentric (Optional) | High Frequency Generator Device | Ordinary current adjustment type Speed tracking temperature setting (optional) |
| Eccentric Belt Size | Ø330 Inner hole Ø75 | External temperature measuring device | (Optional) |
| Rated Speed of Wrapping | Concentric 1000rpm, eccentric 600-800rpm | Polishing and cleaning device | (Optional) |
| Overlapping Range | 0-65% | Burr alarm device | (Optional) |
| Paper Break Stop | Photoelectric Sensor | Internal circulation chiller device | (Optional) |
| Tension Method | Concentric (servo/magnetic powder) eccentric (mechanical) | Oven heating method | electric heating tube type/ceramic plate type (optional) |
| Synchronous Control | Mechanical frequency conversion/servo control (optional) | Pay Off | Centering Plate / Step Type / Ordinary and Simple (Optional) |
