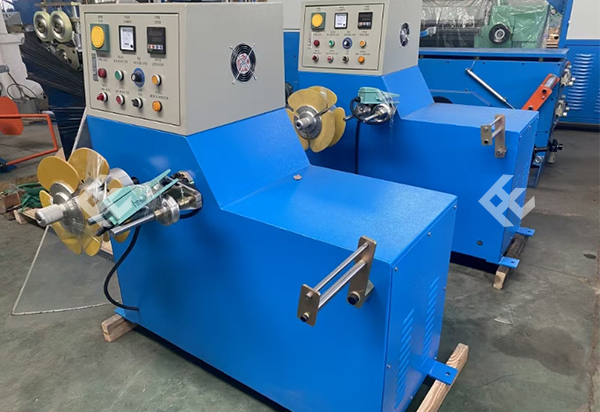

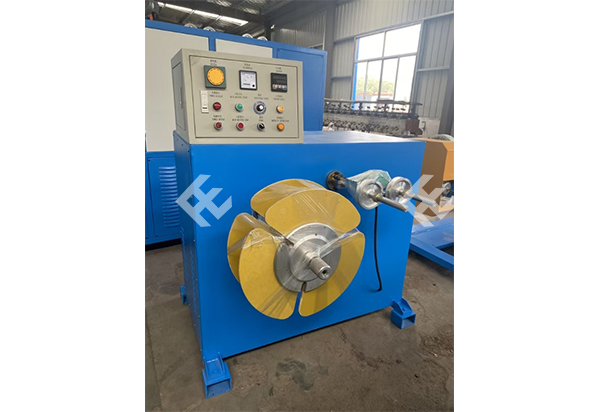

Automatic Wire Wrapping Machine
Brief Introduction
Suitable for φ0.5-6mm² wires and less than 10mm² wires.
Detailed Information
Features
1.The automatic tension can control pay off unit, pay off bobbin can not disorderly the wore.
2.Adopts auto pay off set, pay off wire is in order.
3.High effieiency, generally, produce 700 in 8 hours, lift thrice.
Technical Parameters
| Model | Φ630mm | Φ1250mm | Φ1250mm~Φ1600mm |
| Applicable wire range | 0.5-6mm² | 10-70mm² | 10~240mm² |
| Traversingtension | Automatically pressing traversing | ||
| Main motor speed | 600r/min | 300r/min | 300r/min |

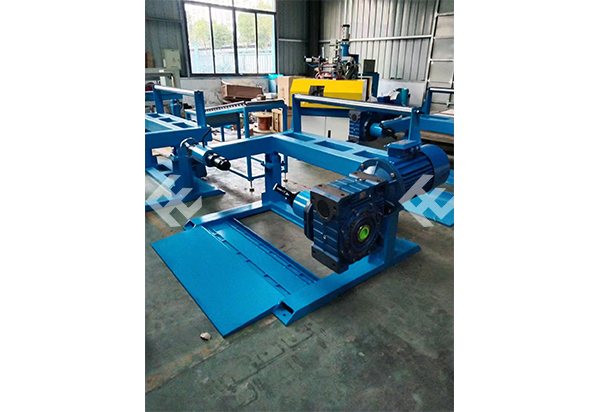

| Loading bobbin type | Lever-type | Electric type | Electric type |
| Pay-off bobbin model | φ400-630mm (national standard) | φ800-1250mm (national standard) | φ1000-1600mm (national standard) |
| Tapping model | OD≤320mm ID≤120mm Width: 30-100mm Adjustable | OD≤600mm ID: 200/300mm Width: 60-150mm or 150-200mm Adjustable | 50-250 Adjustable |
| Power | 2.2KW | 3KW | 4KW |

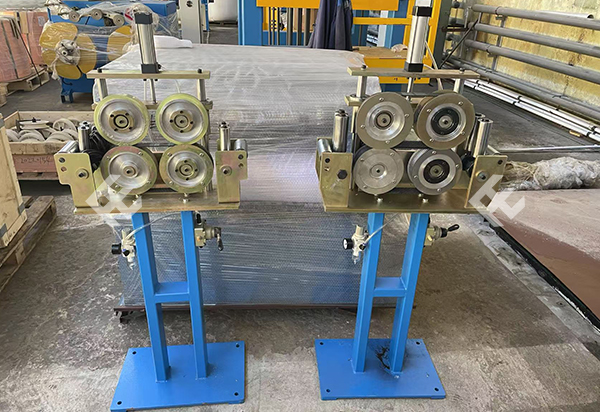

| Meter counter structure | Type of wheel pressure | Double wheel type with air pressure | Double wheel type with air pressure |
| Induction type/measurement accuracy 感 | Rotary encoder/0.5% | Rotary encoder/0.5% | Rotary encoder/0.5% |
