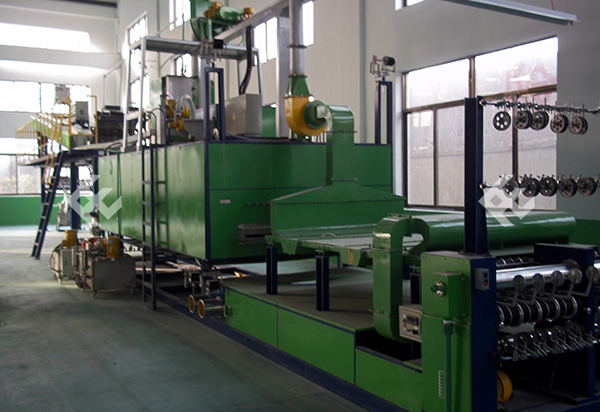

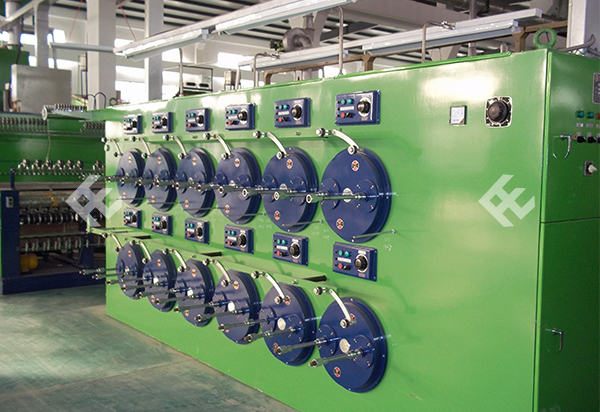

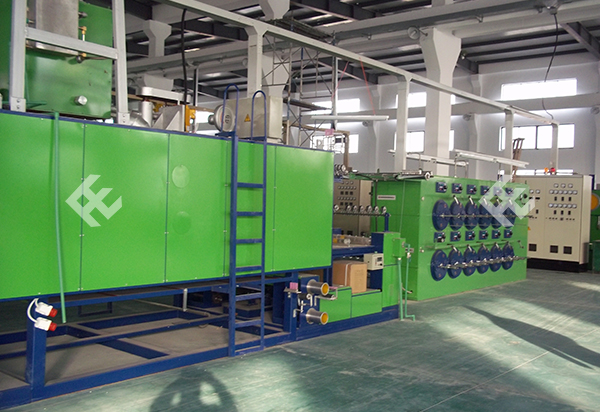

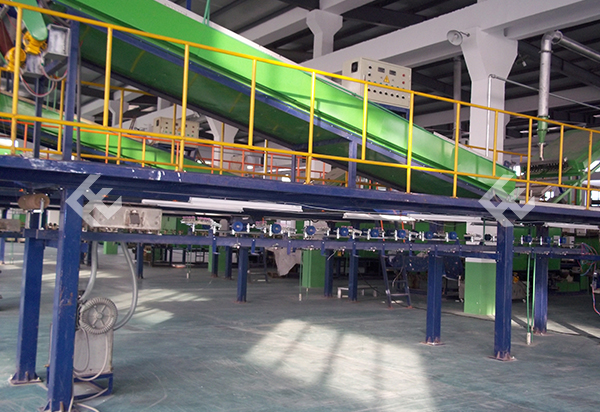

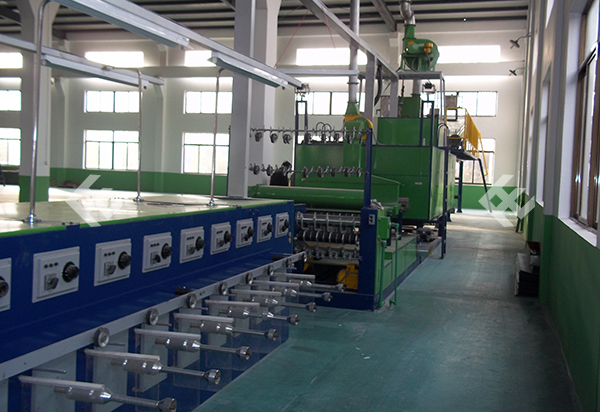

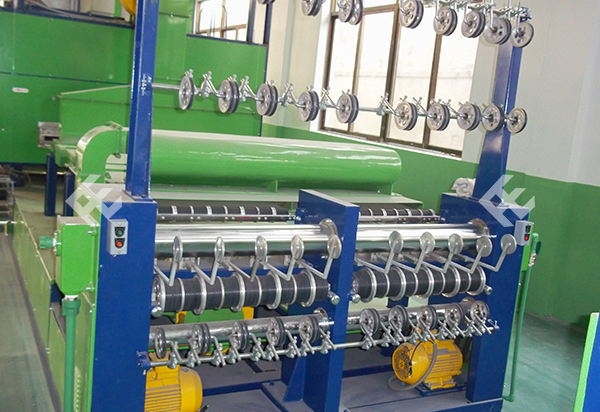

High Speed Horizontal Enameling Machine
Brief Introduction
The main function of the horizontal enameling machine is to evenly coat the insulating varnish on the surface of the conductor to form a uniform and smooth insulating layer, thereby protecting the conductor and improving its electrical and mechanical properties. Specifically, the Horizontal enameling machine plays a vital role in the manufacturing process of wires and cables.
Detailed Information
Features
1. Space saving: Horizontal enameling machines generally have a small footprint
2. High production efficiency: can quickly and accurately coat enameled wires, thereby increasing production efficiency, reducing production time, and increasing output
3. High degree of automation: equipped with an automated control system that can automatically adjust parameters such as line speed, tension, and coating thickness, reducing the need for manual operation and improving production consistency and quality
4. Good environmental performance: small packaging machines use high-quality stainless steel (SUS304) to weld to form green and environmentally friendly packaging, which meets the requirements of environmental protection policies
Technical Parameters
| Model | Specification | Wires & Passes | Features |
| H2200 | Φ0.02 mm - Φ 0.04 mm | 16+10 20+10 | Painting: Felt painting, metering pump felt painting Take-up: Semi-automatic reel turning Fully automatic reel changing Traversing: Independent left and right control, unified traversing Single wire independent traversing Single wire optical control traversing Maxtake-up: PT-4 PT-10 PT-15 Main control: Traditional instrument control Touch screen control, with process record query function Testing System: Fully automatic laser diameter measurement Paint film automatic adjustment function Online Detection: Online high-voltage pinhole detection system Environmental protection device: Exhaust gas environmental protection processor |
| H2400 | Φ0.03 mm - Φ 0.05 mm | 36+8 32+8 32+9 28+10 | |
| H2600 | Φ0.035 mm - Φ 0.06 mm | ||
| H2800 | Φ0.04 mm - Φ 0.08 mm | ||
| H3200 | Φ0.06 mm - Φ 0.12 mm | 36+8 32+8 32+9 28+10 | |
| H3400 | Φ0.07 mm - Φ 0.14 mm |
