Hypoxia Copper Rod Continuous Casting and Rolling Machine
Brief Introduction
This line is unique in our country, it combines the advantages of relative international products of SCR of America, SMS of Germany, PROPERZI of Italy and the experiences of our company. It uses 100% scrap red copper as raw material, and adopts the advanced refining technology to continuous casting and rolling bright hypoxia copper rod.
Production Process
i. When using cathode copper as raw materials:
Cathode copper→Vertical furnace→Holding furnace、Launder→Pouring groove→5-wheel Casting Machine→Front haulage device→Rolling Shear→Straightening and Burring Machine→Feeding Deice→Two rollers Continuous rolling machine→Reduction And Cooling Device→Back Haulage→Coiling device→Hydraulic Package device.
ii. When scrap copper is used:

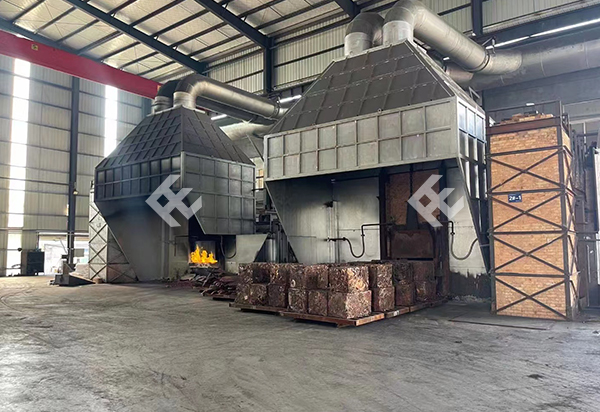

Scrap copper→ reverberating furnace→ (Melting, oxidation and refining)→ Launder→ Pouring groove→ 5-wheel casting machine→ Front haulage→Rolling shear →Straightening machine (second cooling→ Edge milling machine→ Burring machine→ Continuous rolling mill→ Reduction and cooling device→ Back haulage→ Coiler
Technical Parameters
Two-roller CCR Line
| Type | Scrap copper | Cathode copper |
| Rolling | Two rollers(vertical,horizontal) | Two rollers(vertical,horizontal) |
| Diameter | ∅8 | ∅8 |
| Speed | 10m/s | 10m/s |
| Finished Products | Bright hypoxia copper rod | Bright hypoxia copper rod |
| Output | 12~15t/h | 12~15t/h |
Three-roller CCR Line
| Type | Scrap copper | Cathode copper |
| Rolling | Three-roller Y type | Three-roller Y type |
| Diameter | Φ8 | Φ8 |
| Speed | 8.1-9.6m/s | 8.1-9.6m/s |
| Finished product | Bright hypoxia copper rod | Bright hypoxia copper rod |
| Output | 10t/h-15t/h | 10t/h-15t/h |

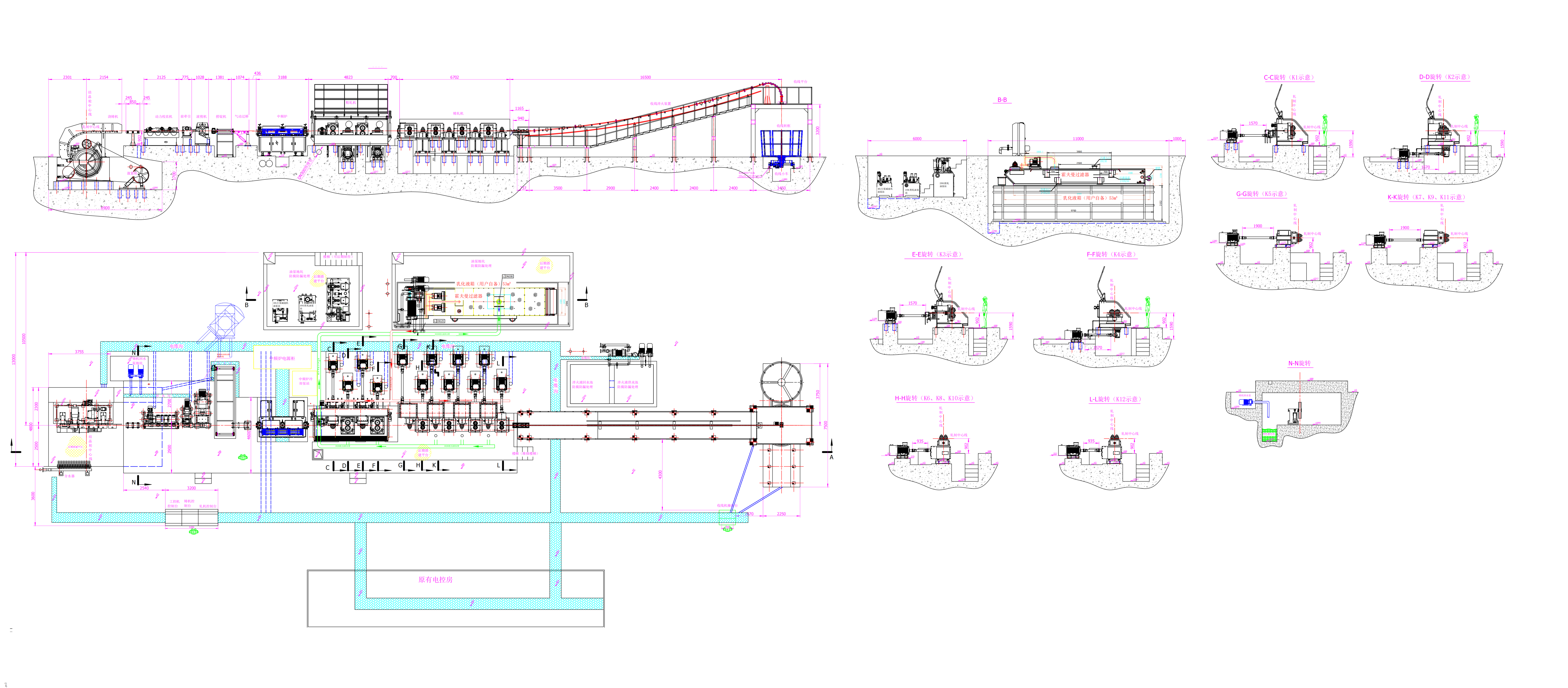

Layout
