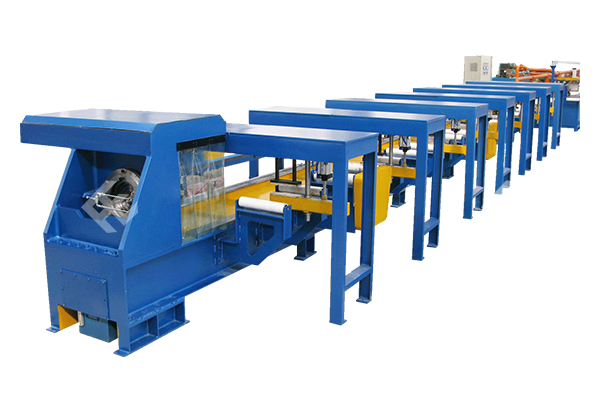

Automatic Hydraulic Drawing Bench Machine
Brief Introduction
The automatic hydraulic drawing bench applies to draw forming and length cut of various copper-aluminum profiles after extruding, the drawn profiles have stable cross-sectional size, good dimensional accuracy, improved hardness, tensile strength and the conductivity, and at the same time it increases the material utilization and greatly improves the surface quality of the profiles.
Production Process
Place the coil → Straightening and feeding → Pass through die → Clamp copper bar → Drawing → Cutting copper bar → Transport → Convery with roller → Fixed length cutting → Unloading and stacking
Technical Parameters
| Model | F-50-12 | F-50-10 | F-50-8 | |
| Drawing force (t) | 12 | 10 | 8 | |
| Max drawing length (m) | 50 | 50 | 50 | |
| Copper bar size | Width(mm) | ≤200 | ≤200 | ≤200 |
| Thickness(mm) | ≤20 | ≤20 | ≤20 | |
| Drawing speed (m/min) | 3~15 | 3~15 | 3~15 | |
| Return speed (m/min) | 45 | 45 | 45 | |
| Main motor (kw) | 75KW | 75KW | 75KW | |

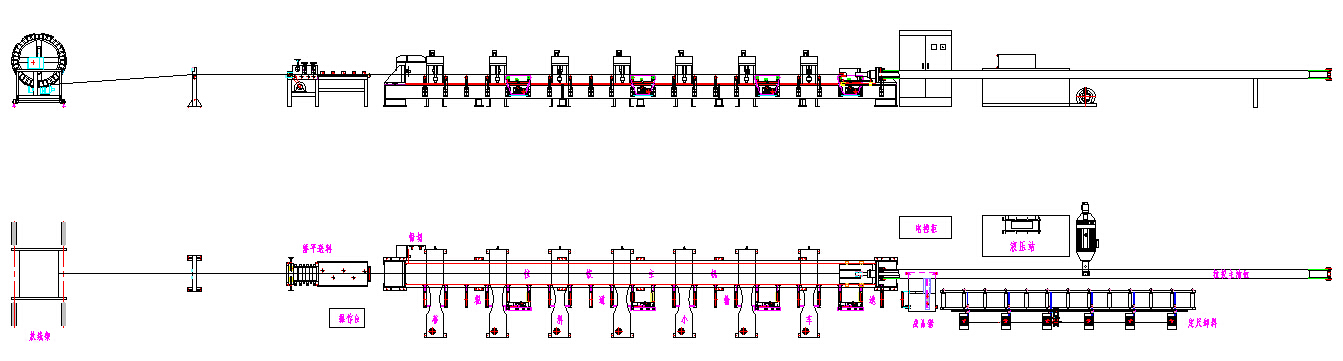

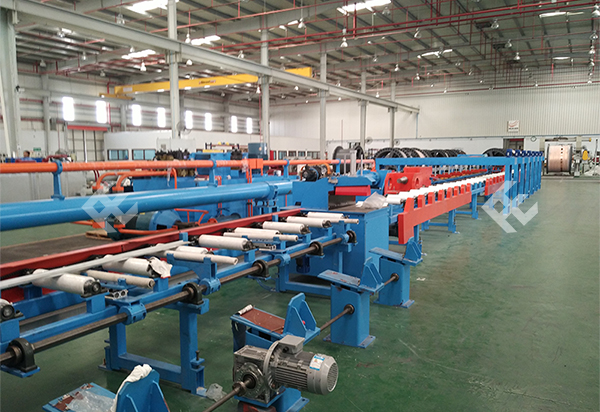

Layout
