Continuous Extrusion Machine for Copper Flat Wire and Copper Bar
Brief Introduction
The machine is used for producing copper flat wire, copper bar and other conductor etc.
Production Process
Pay-off
Rod straightener and cutter unit

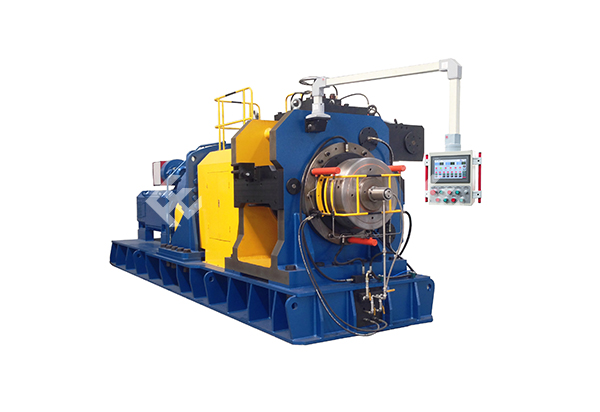

Continuous extrusion machine
Hydraulic and lubrication system
Water cooling system
Meter counter
Take-up stand
Electric control system
Technical Parameters
| Model | Extrusion Wheel Dia.(mm) | Max. Width (mm) | Section Area (mm2) | Productivity (kg/h) |
| F-CCE- 250 | 250 | 14 | 5-50 | 160 |
| F-CCE- 300 | 300 | 40 | 10-200 | 480 |
| F-CCE- 300A | 300 | 50 | 10-250 | 620 |
| F-CCE- 350 | 350 | 80 | 600 | 860 |
| F-CCE- 400 | 400 | 170 | 2000 | 1300 |
| F-CCE- 500 | 500 | 240 | 3800 | 2000 |
| F-CCE- 630 | 630 | 320 | 6400 | 2000 |

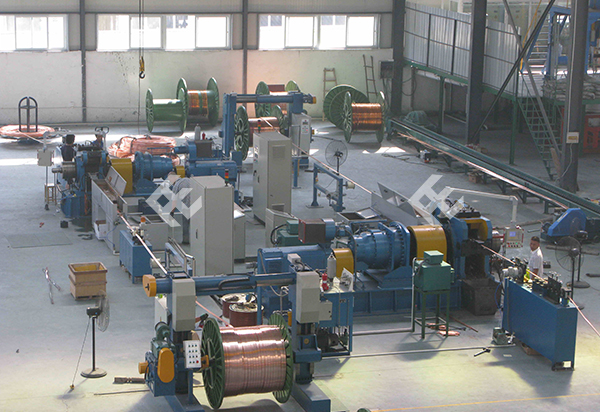

Layout
