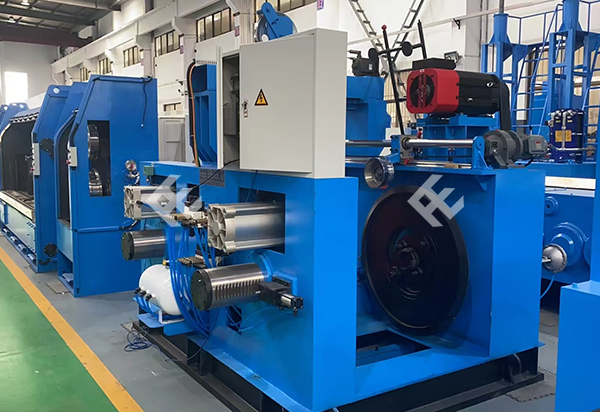

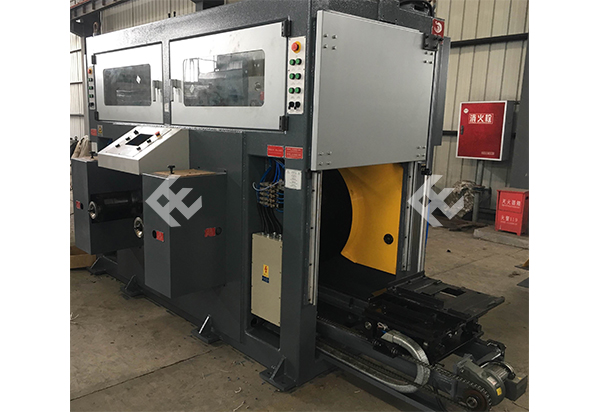

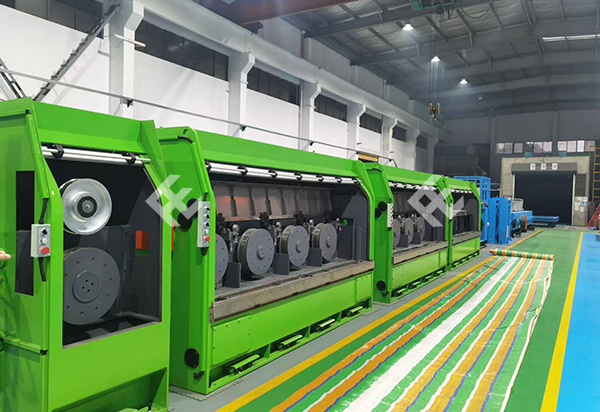

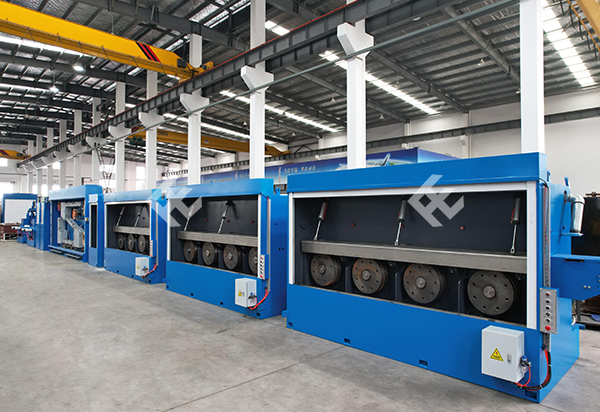

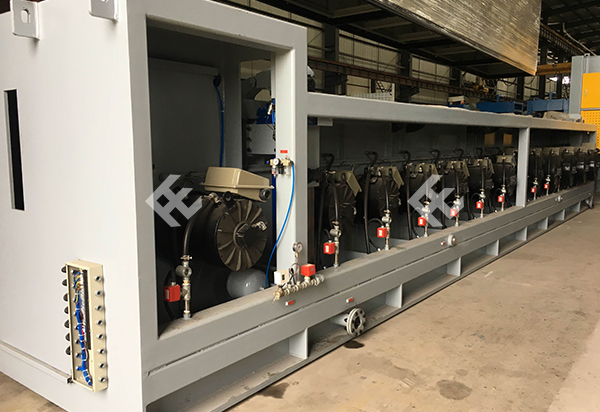

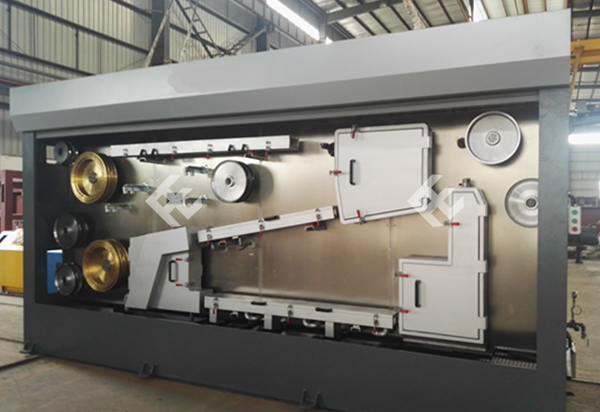

Individual Motor Sliding Heavy-Duty Copper & Al/Al-alloy Rod Breakdown Machine
Brief Introduction
This machine is mainly used to draw single copper rod φ8.0mm to Φ1.2-Φ4.5mm(drawing aluminium wire from 9.5mm to 1.7~4.8mm) copper wire. The tooth material in gear box is 20CrMnTi, which is quenching processed, with hard surface. The drawing capstan is in a straight line, each capstan has one individual motor for transmission.
Detailed Information
Features
1. 13 sets capstan and circle can interchange,continuously draw and soft the wires. Mechanical and electrical speed is balanced and matched to realize the fast die change function.
2. The machine is easy to operate, with high efficiency, and good products quality. It also equipped multipoints start, stop and automatic stop if wire breaks or reaches the setting meter, which decreases the manual working. This RBD machine also have automatic warning protecting function if gear oil is over temperature or over cooling, low oil pressure, etc. Which protects the machine well and increases machine service life.
Technical Parameters
High Speed Copper Rod Breakdown Machine
| Item | F-LST 450/13 | F-LST 450/13-2 |
| Inlet Wire Dia.(mm) | Ø 8(1 Wires) | Ø8 (2 Wires) |
| Outlet Wire Dia.(mm) | Ø 1.2~3.5 | Ø 1.2~3.5 |
| Max Die No. | 13 | 13*2 |
| Drawing Capstan Dia.(mm) | 450 | 450 |
| Max. Line Speed(mm) | 30 | 30 |
| Main Motor Power(KW) | 55/75 *13 +132(AC) | 55/75*13 +132(AC) |
| Annealer Power | 60V×10000A | 60V×10000A |
| Drawing Capstan | Coated with tungsten carbide | Coated with tungsten carbide |
| Dual Takeup Standard(mm) | PND500/630 | PND500/630 |
| Traversing Type | Motor type | Motor type |
| Lubrication Type | Immersion and spraying | Immersion and spraying |
High Speed Aluminum/Aluminum Alloy Rod Breakdown Machine
| Item | F-LSD 45013 | F-LSD 450/13-2 |
| Inlet Wire Dia.(mm) | ø 9.5 (1 Wires) | ø9.5 (2 Wires) |
| Al Outlet Wire Dia.(mm) | ø 1.7~5.0 | ø 1.7~5.0 |
| Al - alloy Outlet Wire Dia.(mm) | ø 2.3~5.0 | ø 2.3~5.0 |
| Max Die No. | 13 | 13*2 |
| Drawing Capstan Dia.(mm) | 450 | |
| Max. Line Speed(mm) | 30 | 30 |
| Main Motor Power(KW) | 45/55*13 + 90(AC) | 45/55*13 + 90(AC) |
| Drawing Capstan | Coated with tungsten carbide | |
| Dual Take-up Standard(mm) | PND500/630 | |
| Traversing Type | Motor type | |
| Lubrication Type | Immersion and spraying | |
