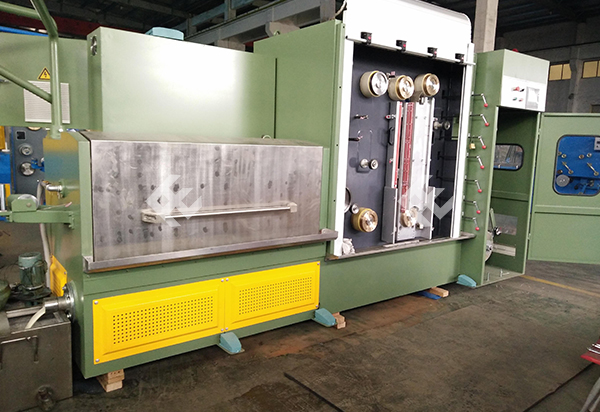

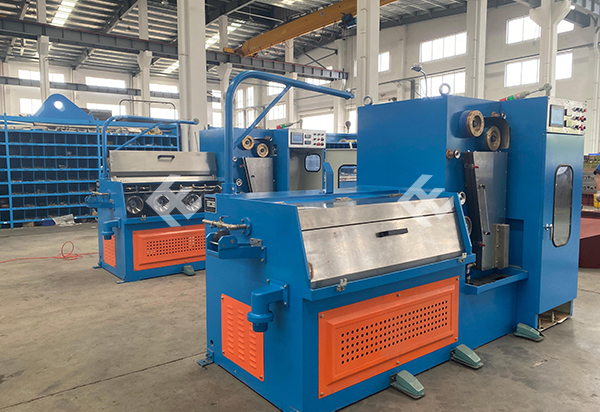

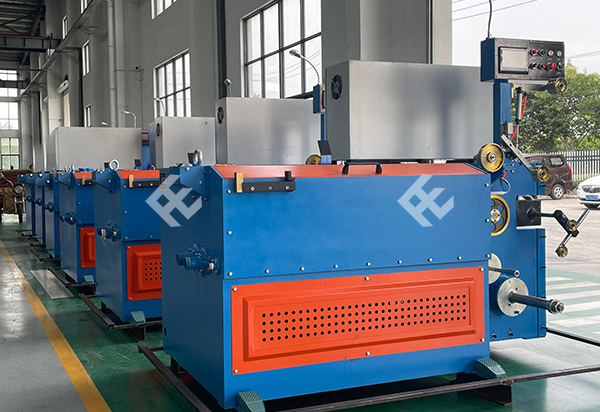

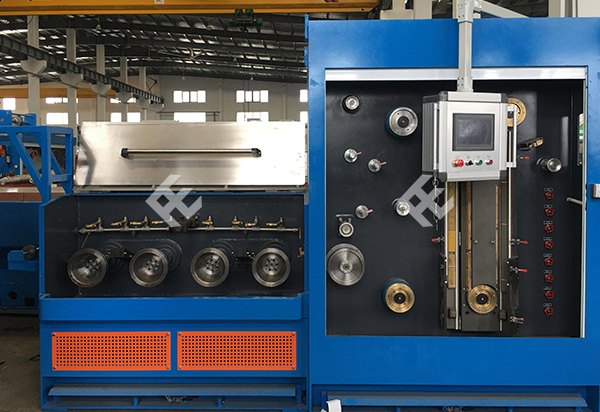

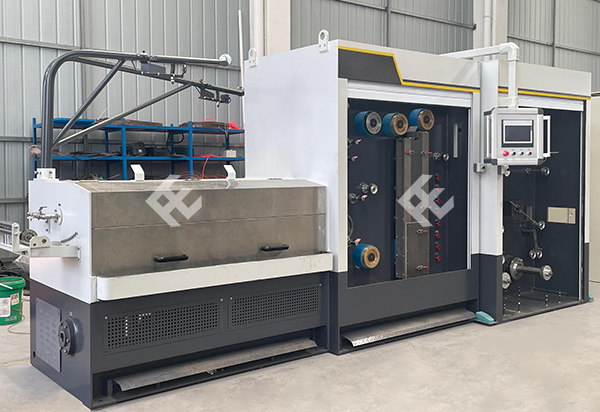

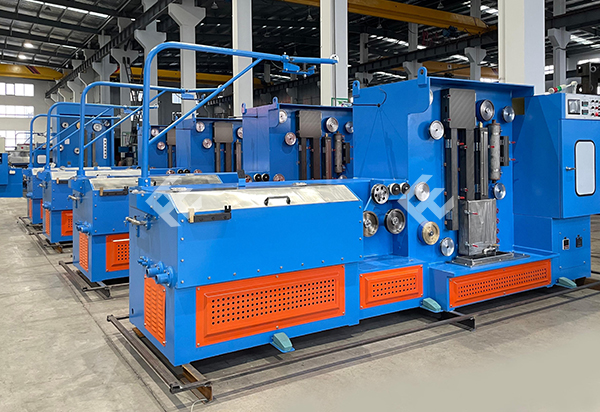

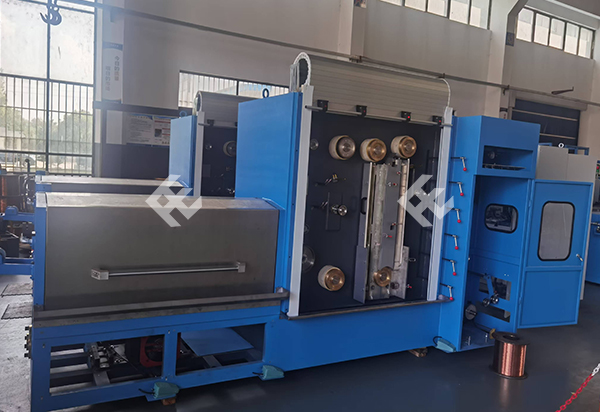

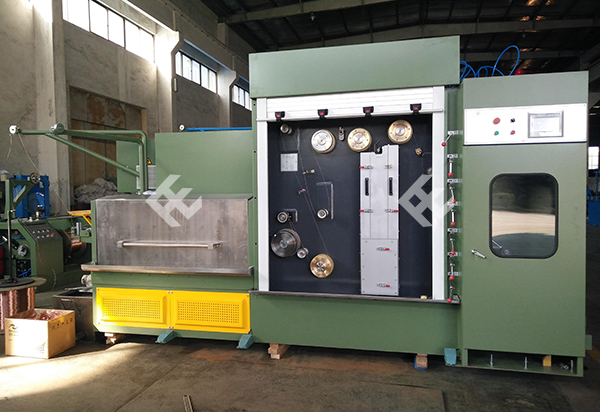

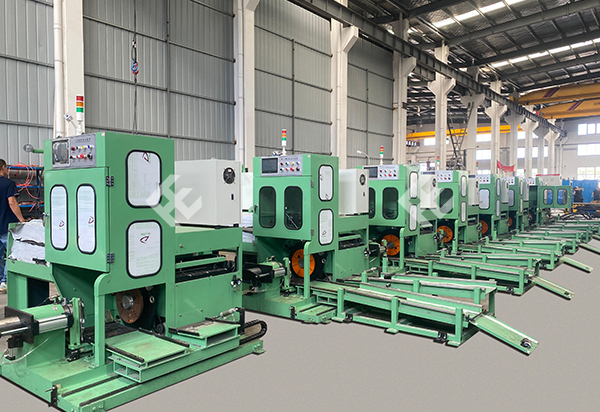

Sliding Type Fine Copper Wire Drawing Machine
Brief Introduction
This series of machine is used to drawing fine copper wires to smaller sizes.
Detailed Information
Features
1. Double motors inverters, small slip high quality.
2. Tension auto control system.
3. High tension durably flat belt gain convenient replacement and low nosie in operating.
Technical Parameters
| Machine type | FJX-B17 | FJX-B20 | FJX-14D | FJX-B22 (FJX-B22/A) | FJX-B24 (FJX-B24/A) | FJX-22D (FJX-22DA) | FJX-24D (FJX-24DA) |
| Inverter control | Double inverter control | ||||||
| Main machine structure | four cones in horizontal | two cones in horizontal | four cones in horizontal | four cones in vertical | |||
| Max. Inlet Dia. (mm) | Ф1.8 | Ф1.6 | Ф1.38 | Ф1.2 | Ф1.2 | Ф1.0 | |
| Outlet Dia. (mm) | Ф0.30～Ф0.70 | Ф0.30～Ф0.65 | Ф0.25～Ф0.50 | Ф0.1～Ф0.5 | Ф0.08～Ф0.32 | Ф0.10～Ф0.32 | Ф0.08～Ф0.25 |
| Max. Die No. | 17 | 19 | 14 | 22 | 24 | 22 | 24 |
| Max. Line speed (m/min) | 1500 | 1500 | 1200 | 2000 (2500) | |||
| Body structure | Welded | Ironed cast | |||||
| Drawing capstan | Ceramic plasma capstan | ||||||
| Slip ratio of m/c (%) | 15 | 13 | 15 | 13 | |||
| Main motor power (kw) | 18.5 | 15 | 15 | 11 (15) | 11 | ||
| Take-up motor (kw) | 5.5 | 5.5 | 5.5 | 4 | 4 | ||
| Fix speed capstan Dia. (mm) | Ф200 | Ф200 | Ф268 | Ф160 (Ф206) | |||
| Transmission type | Belt | ||||||
| Take-up bobbin size (mm) | Ф300 / Ф400 | Ф300 | |||||
| size (mm) | |||||||
| Traversing type | Synchronous motor + belt | ||||||
| Tension control | Weight balance type | ||||||
| Lubrication type | Full immersion | Spray | |||||
| Brake | Magnetic Brake | ||||||
| Weight (KG) | 2600 | 2600 | 2200 | 2300 | 2300 | 2000 | 2000 |
