Tube Type Centralized Annealing Machine
Detailed Information
Features:
1. The annealing furnace is designed internal, with uniform furnace temperature distribution and good energy saving effect.
2. Double tinning furnace designed, diversified products can be produced simultaneously;
3. Double-layer coiler designed for saving equipment usable area
Technical Parameters
| Models | F-12H | F-32H/3.5 | F-40H/4.5 | F-40H/6 | F-40H/7.5 |
| Wires | 12 | 32 | 40 | 40 | 40 |
| Dia (mm) | Φ0.35～Φ1.05 | Φ0.038～Φ0.08 | Φ0.08～Φ0.32 | Φ0.10～Φ0.65 | Φ0.1～Φ0.7 |
| Pay-off | Flyer/Overhead | Brush | Flyer/Brush | ||
| Max Speed (m/min) | 100 | 300 | |||
| Annealing | / | Electric heat radiation heating pipeline annealing + water seal protection | |||

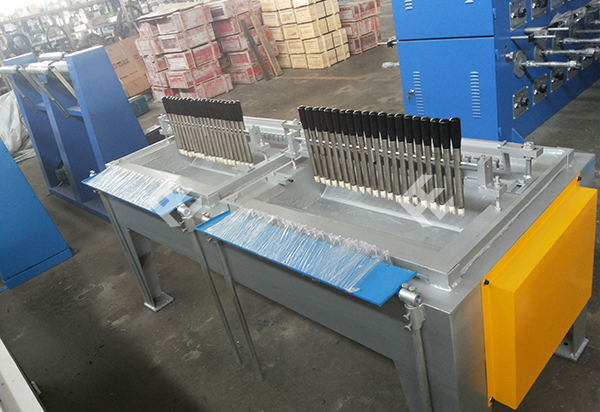

| Tinning | Hot dip (Vertical) | Hot dip (Horizontal) | |||
| Pay-off bobbin size (mm) | Φ300～Φ630 | Φ250 | Φ300 | ||
| Take-up | Pail Spooler | Single spooler | |||
| Traversing | Plum circling traversing | Gear motor + inverter control | |||
| Take-up bobbin size | Φ300×Φ150×365 | 4″～5″ | 5″～8″ | 5″～10″ | 5″～10″ |
| Total power (KW) | 25 | 50 | 50 | 65 | 75 |
Components
| 40 wires pay-off reels | 1 set |

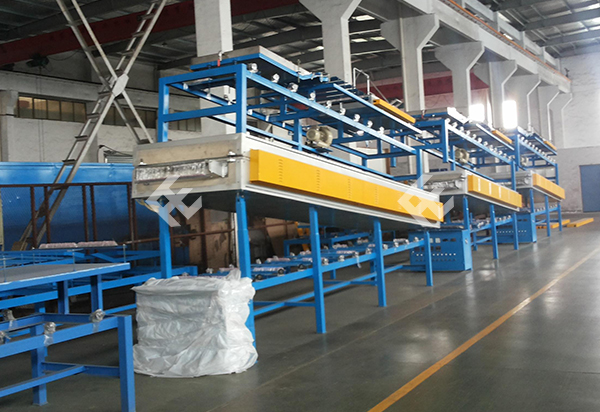

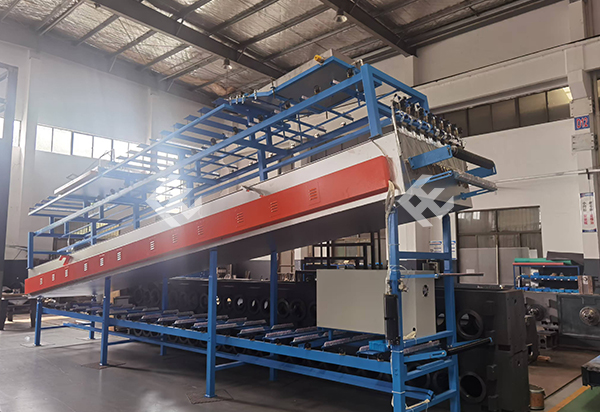

| Tube type copper wire softening furnace | 1 set |
| Water wiper and copper wire drying furnace | 1 set |
| Dual wheel hauling machine | 1 set |

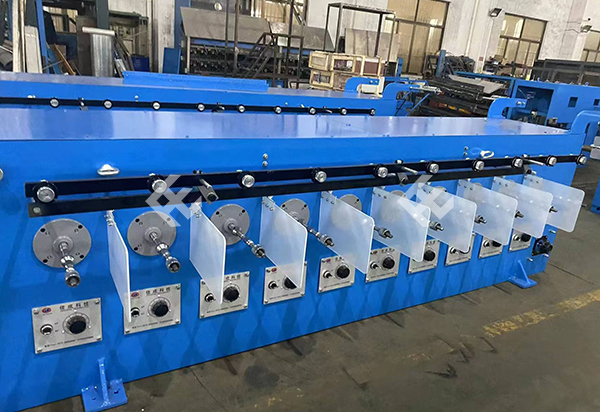

| 40 wires coiling machine | 1 set |
| Electrical control box | 1 set |
| Back-up | 1 set |
