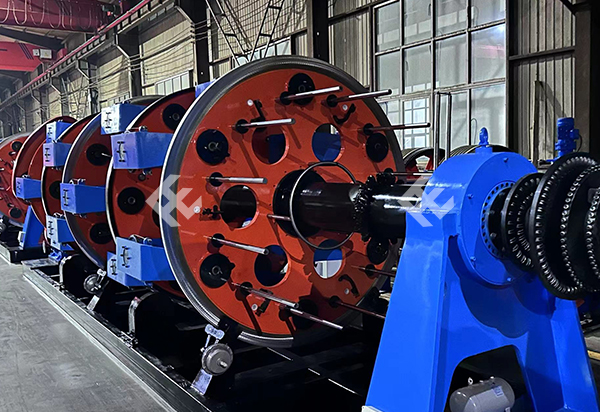

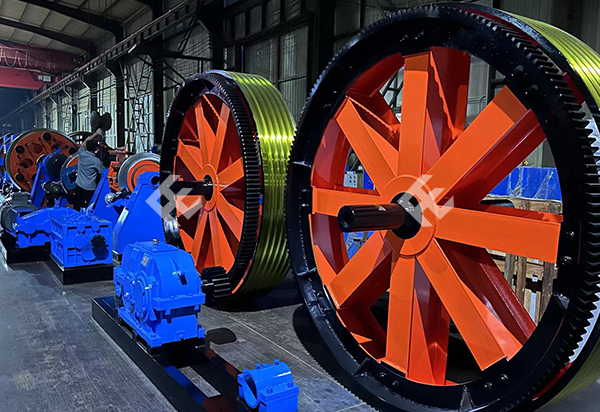

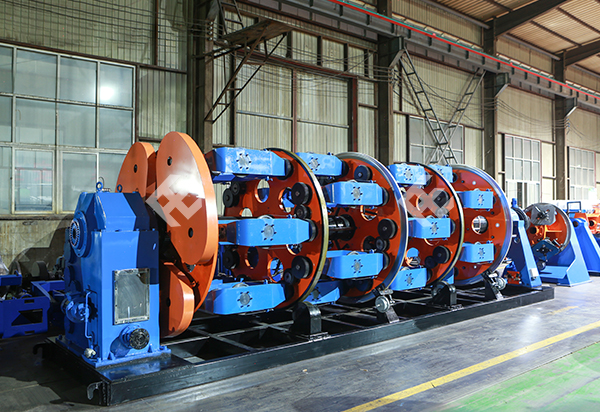

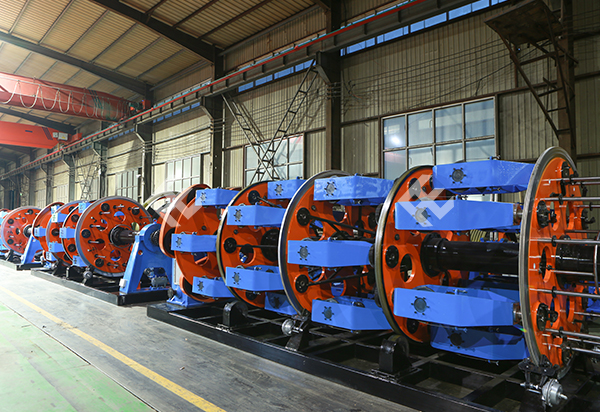

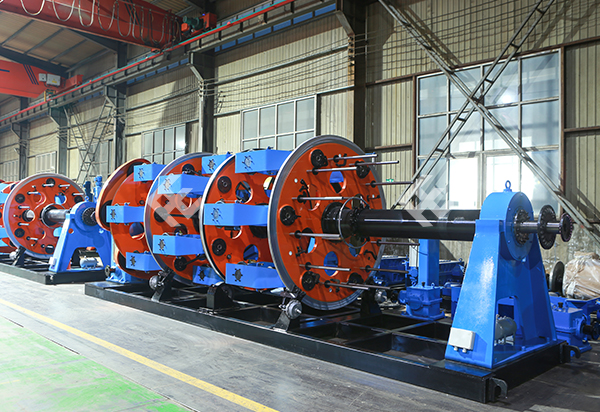

Planetary Type Stranding Machine
Brief Introduction
The machines are mainly used to strand steel –cored aluminum wire, bare copper wires and aluminum wires. They may also be used for cable forming of rubber sheathed cables, multi-strand plastic cables and all kinds of communication cables,OPGW cables etc.
Detailed Information
Features
1. The structure of the strander is that the strander body is located in the front and supported by the big bearing seat in the back. The main axis is thick-walled seamless tube without supporting wheels, is of good steel rigidity, high speed and steady operation and other features.
2. The back twisting mode: all-gear back twisting is used to overcome the short comings of the fragile and poor reliability caused by using traditional back-twisting rings and increase the reliability of the equipment operation.
3. The braking mode: pneumatic brake
Main components
Single reel stand
Reel stand with around bow
Stranding cage(with filler device)
Double rows die holder
High speed nonmental tapping device
Meter counter
Metal tapping device
Caterpillar
Shaft-less take up
Technical Parameters
| Bobbin Size (mm) | Max. Rotation Speed (rpm) | Wire Dia. (mm) | |||||||||
| Solid Conductor | Finished Conductor | Al-clad Steel Wire | Optical Fiber Cell | ||||||||
| 6B | 8B | 12B | 16B | 18B | 24B | Aluminum | Copper | ||||
| 400 | 126 | 112 | 98 | 86 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | ||||
| 500 | 105 | 93 | 82 | 71 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | ||||
| 630 | 85 | 80 | 74 | 70 | 65 | 57 | 1.8~5.0 | 1.2~5.0 | 1.2~5.0 | 1.2~4.5 | 1.5~5.0 |
