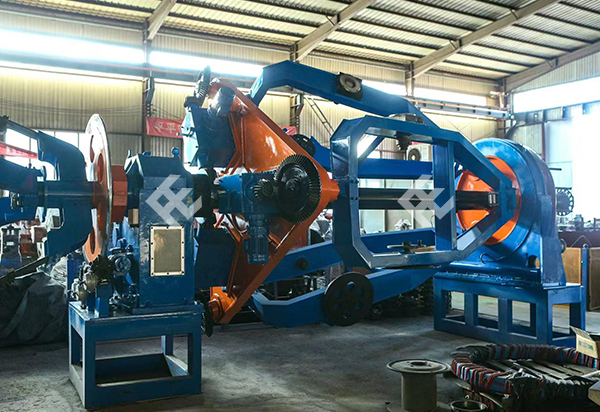

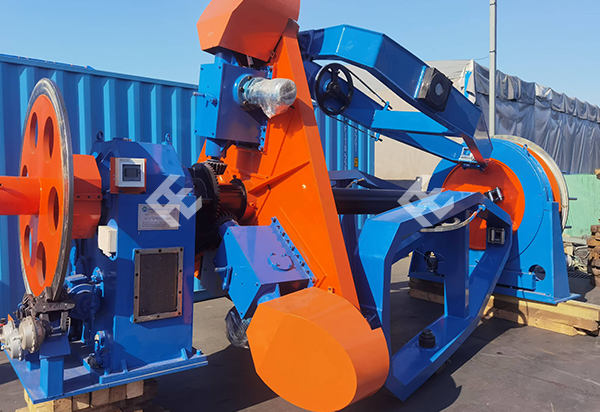

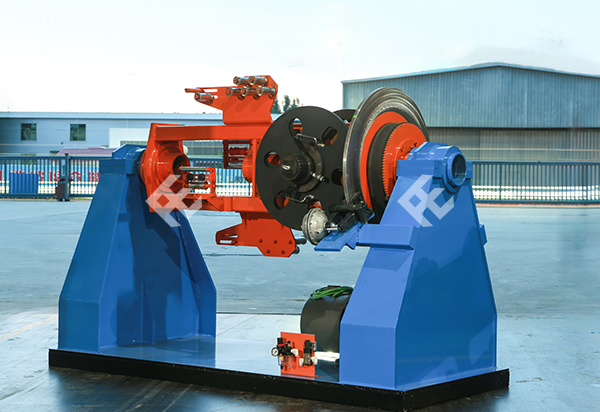

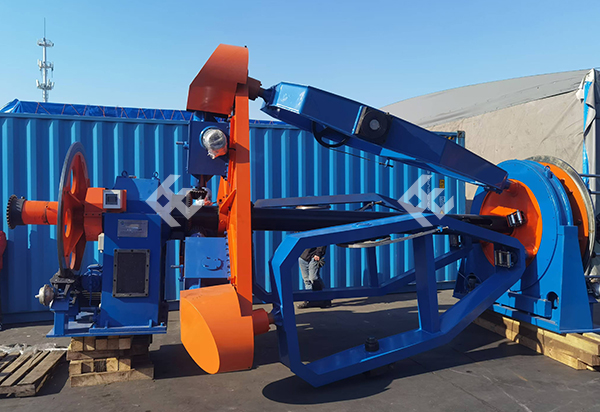

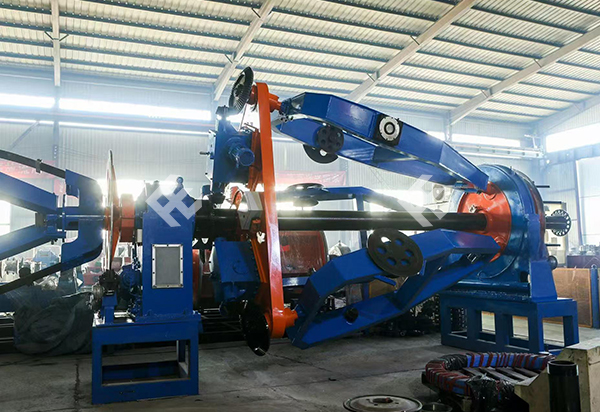

Cradle Type Cabling Machine
Brief Introduction
The machine is used for cabling medium low voltage cables, telephone cables,control cables or mining cables.
Detailed Information
Features:
1. The machine is with low cost compare to other stranding machines, but produced by the machine with high quality.
2. The machine is equipped with back-twist stranding, electronic pre-twist, bobbin is clamped and released by electromotion.
3. The machine is equipped with PLC control system for pre-setting laying up pitch and for speed synchronization with the take up unit.
4. Caterpillar(belt) type haul-off unit driven by independent motor.
5. The machine can be equipped with taping or armoring device.
Technical Parameters
| Bobbin Size (mm) | Max Rotation Speed (rpm) | Cable Core O.D. (mm) | Loading Capacity (kg) | |||
| 6B | 12B | 18B | ||||
| Ø400 | 150 | 131 | 115 | Ø1.0~Ø2.5 | 100 | |
| Ø500 | 123 | 109 | 96 | Ø1.5~Ø6.0 | 200 | |
| Ø630 | 100 | 87 | 77 | Ø2.0~Ø10.0 | 300 | |
| Bobbin Size (mm) | Max Rotation Speed (rpm) | Cable Core O.D. (mm) | Loading Capacity (kg) | |||
| 3B | 6B | (1+3)B | (1+1+3)B | |||
| Ø1000 | 40 | 40 | Ø5.0~Ø20.0 | 2000 | ||
| Ø1250 | 32 | 32 | 32 | 32 | Ø6.0~Ø25.0 | 3000 |
| Ø1600 | 21 | 21 | 21 | 21 | Ø10.0~Ø35.0 | 4000 |
