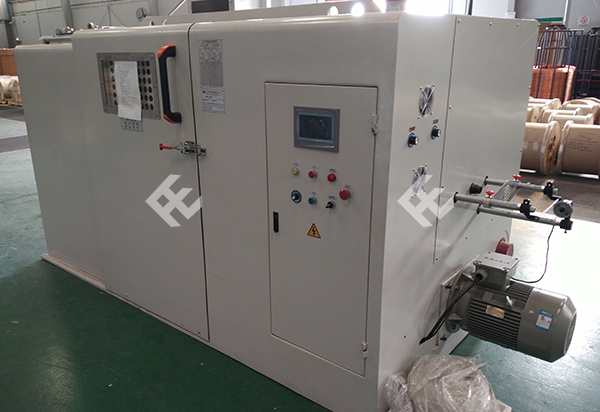

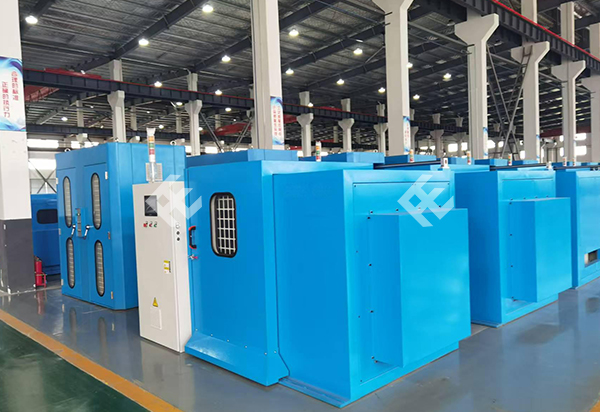

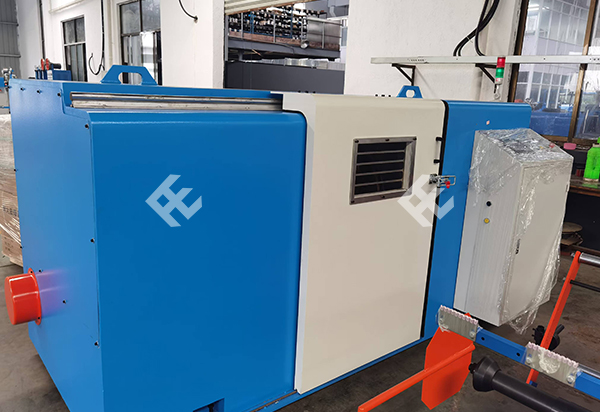

Automatic Double Twist Bunching Machine
Brief Introduction
The machine is used for bunching bare copper, tinned wire, enameled wire, etc. Control type will be PLC, HMI and Inverter control.
Detailed Information
Auxiliary machine：

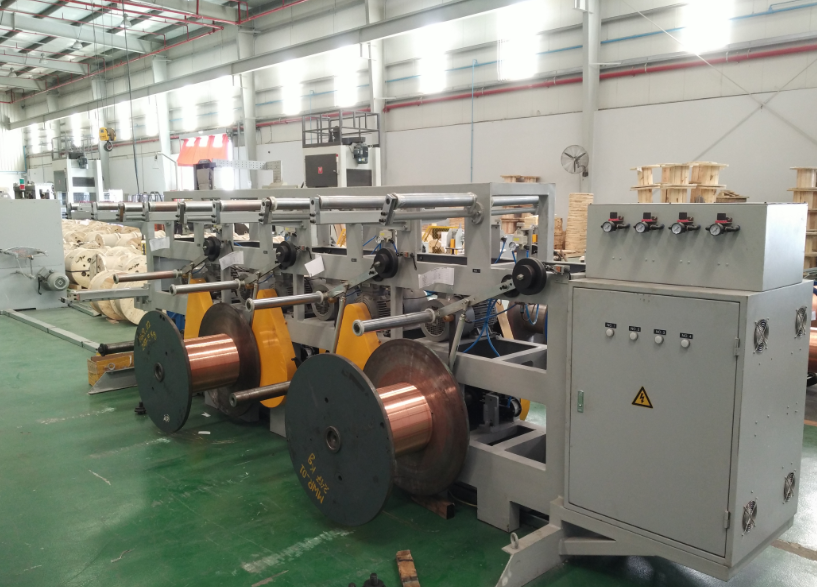

1. Pay off

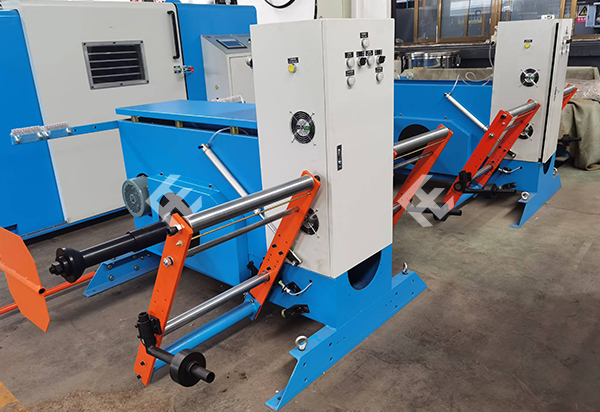

2. Rewinder
Main usage
The machine is used to change different material and diamter bobbin
Main composed parts

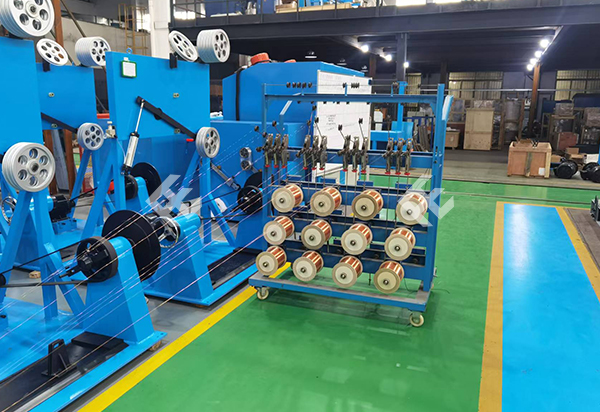

Pay-off
Meter machine

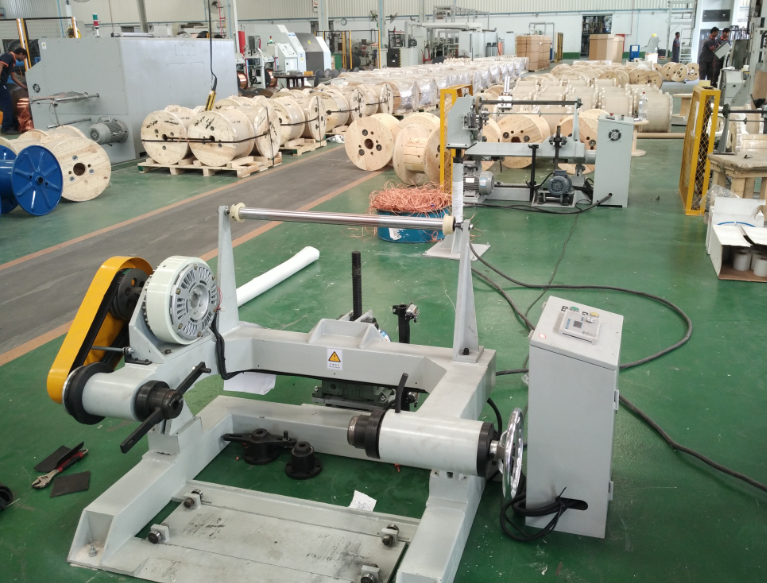

Take-up
Technical Parameters
| Model | F- 300P | F- 500P | F- 500P/B | F- 650P | F- 800P |
| Twisting Section Area (mm²) | 0.035~0.45 | 0.05~2.50 | 0.05~4.00 | 0.18~6.00 | 2.50~16.00 |
| Copper Wire Dia. (mm) | 0.05~0.25 | 0.1~0.45 | 0.1~0.52 | 0.18~1.00 | 0.5~1.2 |
| Twisting Pitch (mm) | 2.00~17.17 | 6.30~50.40 | 6.30~65.00 | 11.61~66.03 | 22.51~152.32 |
| Max Main Shaft Speed (r/min) | 3000 | 3000 | 2500 | 2000 | 1200 |
| Max Bobbin Dia (mm) | φ300 | φ500 | φ500 | φ630 | φ800 |
| Motor Power (KW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Main Shaft Center Height (mm) | 630 | 700 | 700 | 850 | 700 |
