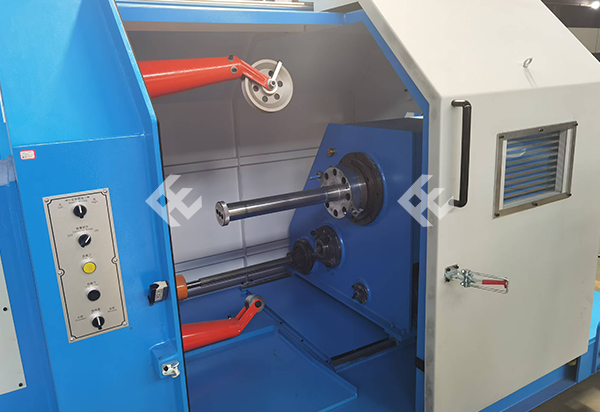

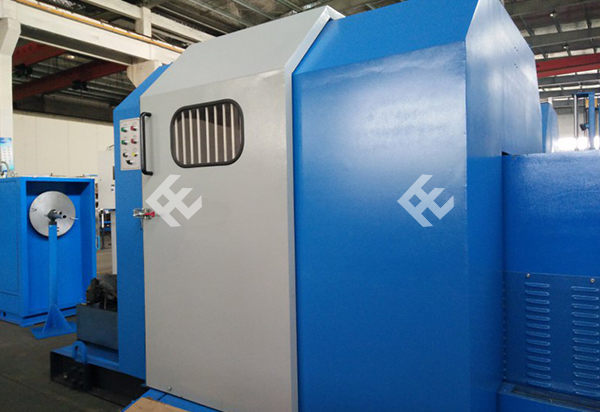

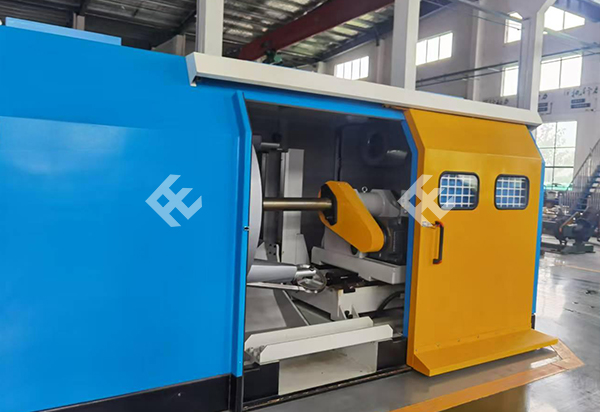

Cantilever Single Twist Wire Bunching Machine
Brief Introduction
Applicable to various data cable into the cable and taping, but also for a variety of soft conductor and computer cables, rubber cables, KVVRP KVVR, RVV, KVV control cable strands and taping.
Technical Parameters
| Model | F- 630 | F- 800 | F- 1000 | F- 1250 |
| Pay-off Bobbin Dia. | Φ400mm-φ500mm-φ630mm | |||
| Take-up Bobbin Dia. | φ630mm | Φ800mm | Φ1000mm | Φ1250mm |
| Applicable Wire Dia. | Φ0.6mm-3.0mm | Φ1.0mm-5.0mm | ||
| Main Motor Power | 11kw | 15kw | 15kw | 20kw |
| Max. Lay-up Dia. | Φ15 | Φ20 | Φ25 | Φ30 |
| Twisting Pitch | 20-200mm | 30-300mm | 30-350mm | 30-350mm |
| No. of Rotate | 1000r/min | 800r/min | 600r/min | 550r/min |
| Traversing Distance | 2mm-12mm | 3mm-20mm | 3mm-30mm | 3mm-30mm |
