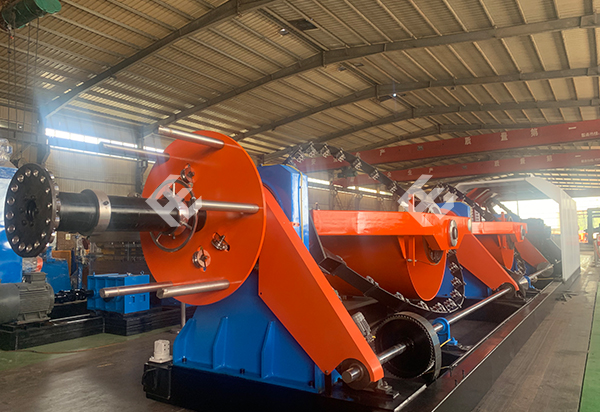

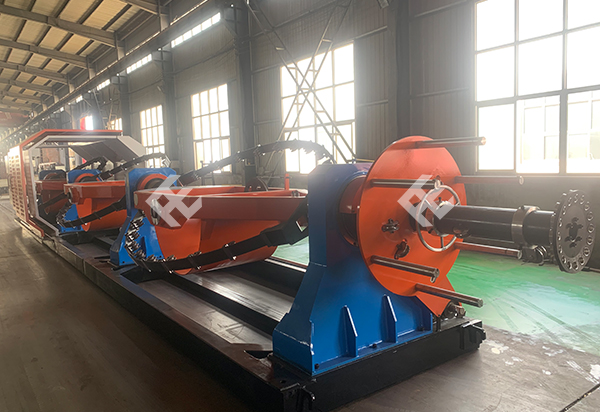

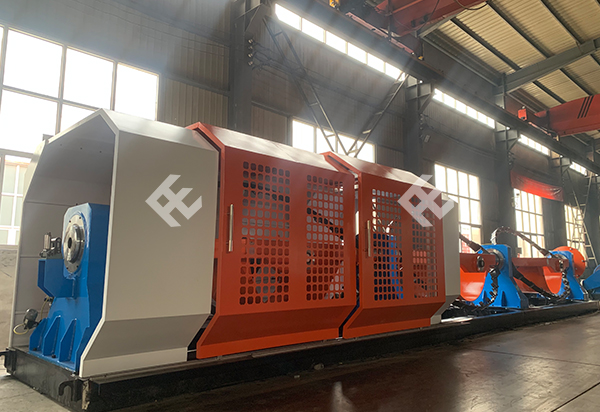

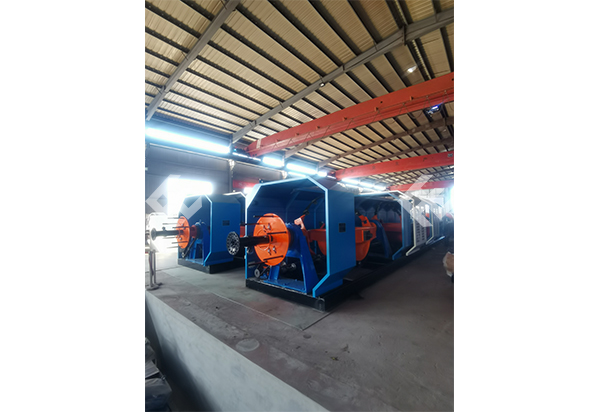

Bow Type High Speed Cabling Machine
Brief Introduction
The bow type stranding machine is 100% back-twisted stranding, suitable for 2~6 wire round processing cables, control cables and power cables.
Detailed Information
Features:
1. The whole machine adopts HMI+PLC control system, the computer presets the stranding pitch and realizes synchronous control of wire collection.
2. Electronic tension system. The detection device measures the stock of the wire reel, and automatically controls the tension from full reel to empty reel.
Technical Parameters
| Model | FG630 | FG1000 | FG1250 | |
| Pay-off (mm) | 630 | 1000 | 1250 | |
| Line Speed (m/min） | 120 | 150 | 150 | |
| Conductor Section (mm²) | 1+3B | 1.5~6 | 4~25 | 10~50 |
| 1+4B | 1.5~6 | 4~25 | 10~50 | |
| 1+5B | 1.5~6 | 4~25 | 10~50 | |
| Max.Core (mm) | 6 | 8 | 12 | |
| Rotor Speed [rpm] | 650 | 450 | 350 | |
| Motor Power （KW） | 1+3B | 35 | 45 | 55 |
| 1+4B | 45 | 55 | 65 | |
| 1+5B | 55 | 65 | 75 | |
