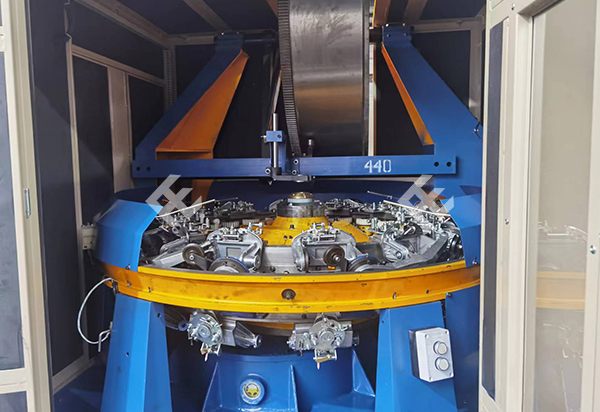

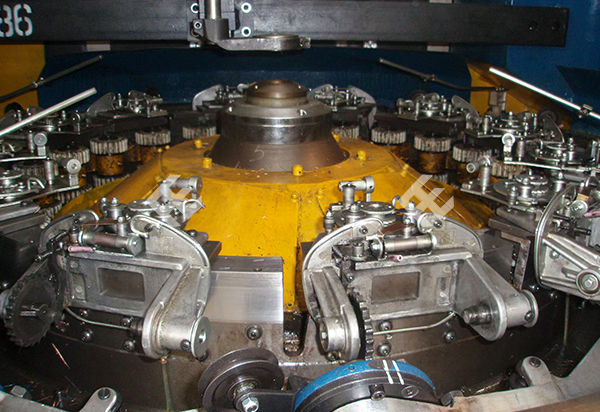

Heavy Braiding Machine
Brief Introduction
This series of heavy braiding machines are mainly suitable for braiding large-diameter copper wires and steel wires. They adopt inverter control with a touch screen and a programmable controller, as well as advanced technologies such as stepless speed regulation, tension adjustment control, quantitative timing automatic lubrication and fault protection. They have the characteristics of high speed, high precision, high stability, low energy consumption, low noise and simple and convenient operation and maintenance.
Detailed Information
Optional Equipment:
1. Servo motor controls pitch adjustment
2. The brand of electrical appliances can be specified by the customer;
3. CE etc.
Technical Parameters

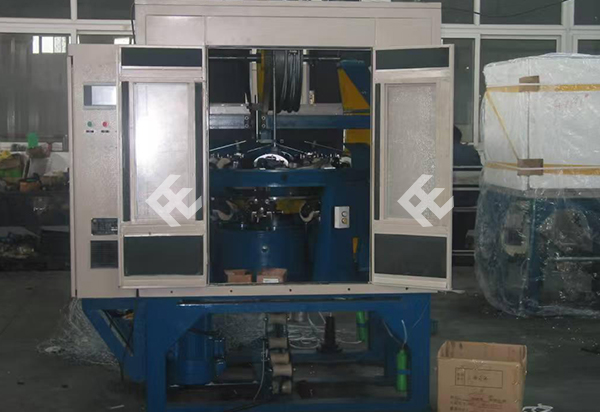

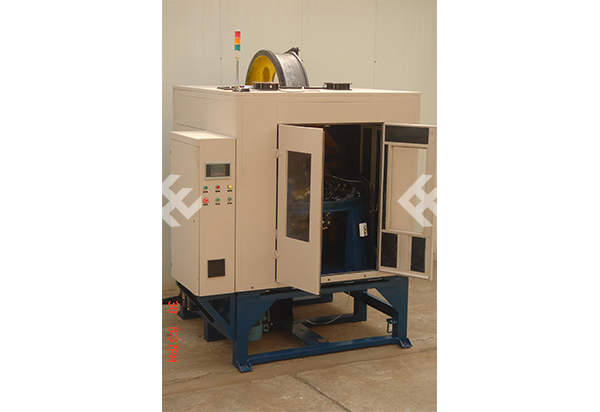

Vertical high speed braiding machine
| Model | FGS-1 | FGS-2 |
| Braiding Way | 2 piles 2 | |
| Braiding Direction | Vertical | |
| Wires | 16 | 24 |
| Wires Dia. | Ø75 x Ø22 x Ø70 or Ø80 x Ø22 x Ø80 | |
| Rotation Speed | 150/165 r.p.m.(Max) | 100/110 r.p.m.(Max) |
| Braiding Pitch | 8.2~32.5mm or 6.4~65mm | 13.3~134.5mm |
| Max Exterior Dia | 14mm | 24mm |
| Main Motor Power | 5KW/2.2KW | 3KW |
| Pay-off | Passive, bobbin size<=800mm< /td> | |
| Take-up | Geared motor+friction plate, bobbin size<=800mm< /td> | |

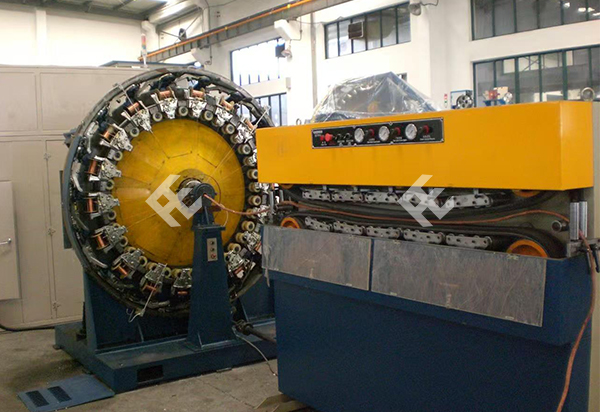

Horizontal heavy braiding machine
| Model | FGS-1Z | FGS-2Z |
| Braiding Way | 2 piles 2 | |
| Braiding Direction | Vertical | |
| Wires | 16 | 24 |
| Wires Dia. | Ø110XØ45X100 | |
| Rotation Speed | 70 r.p.m. | 60 r.p.m. |
| Braiding Pitch | 18.4~185.9mm | 27~270mm |
| Max Exterior Dia | 30mm | 45mm |
| Main Motor Power | 2.2KW(8P) | 5.5KW(4P) |
