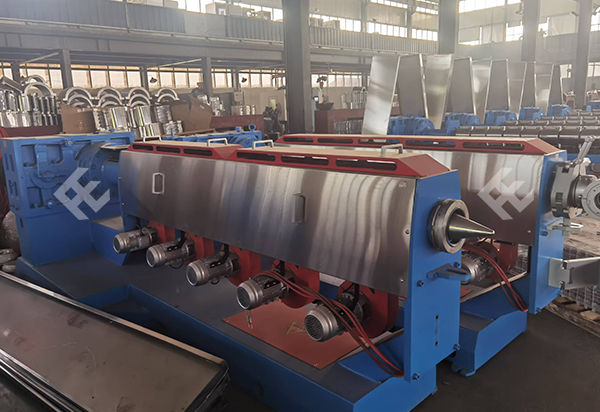

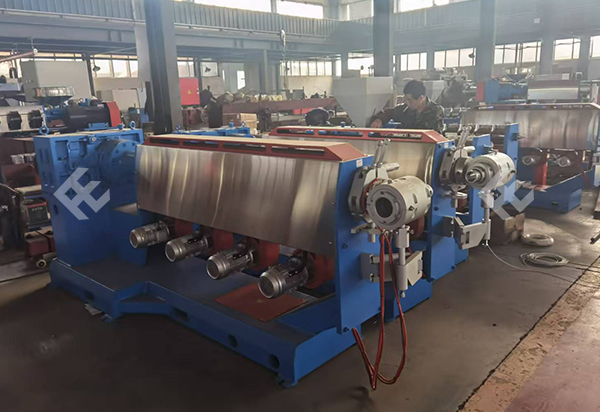

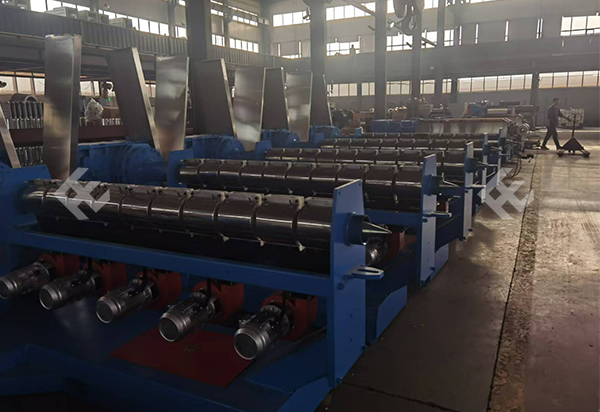

Cable Sheathing Extrusion Line
Brief Introduction
It’s used for the insulation of wire &cable with PVC, LDPE, NYLON, TPU. Also it can be equipment with triple co-extrusion crosshead and double layer.
Technical Parameters
| Model | Screw Parameters | Output | Power (kw) | After | Before | ||
| Dia. (mm) | L/D Ratio | Rotation Speed (r/min) | Extrusion Capacity | Main Motor Power | Finished Wire Dia.(mm) | Discharge Diameter (mm) | |
| FJX-70 Extrusion | Φ70 | 25:1 | 100 | 130 | 30 | 4-30 | 3-15 |
| FJX-80 Extrusion | Φ80 | 25:1 | 95 | 180 | 75 | 4-40 | 3-20 |
| FJX-90 Extrusion | Φ90 | 25:1 | 90 | 280 | 90 | 4-45 | 3-35 |
| FJX-100 Extrusion | Φ100 | 25:1 | 85 | 330 | 110 | 5-60 | 4-50 |
| FJX-120 Extrusion | Φ120 | 25:1 | 80 | 420 | 132 | 8-80 | 8-70 |
| FJX-150 Extrusion | Φ150 | 25:1 | 70 | 780 | 160 | 15-120 | 8-100 |
| FJX-200 Extrusion | Φ200 | 25:1 | 60 | 1000 | 250 | 35-145 | 30-140 |
| Model | Haul-off Unit | Take-up Bobbin Szie | Line Speed (m/min) | |
| Kg (Front) | Kg (Rare) | mm | ||
| FJX-70 Extrusion | 800 | 630 / 1250 | 5-2000 | |
| FJX-80 Extrusion | 1250 | 800 / 1600 | 10-180 | |
| FJX-90 Extrusion | 500 | 1250 | 800 / 1600 | 10-150 |
| FJX-100 Extrusion | 800 | 1600 | 1000 / 2000 | 10-120 |
| FJX-120 Extrusion | 1250 | 2000 | 1250 / 2500 | 10-90 |
| FJX-150 Extrusion | 2000 | 2500 | 1600 / 3150 | 10-60 |
| FJX-200 Extrusion | 2500 | 3150 | 1600 / 3150 | 2-60 |
