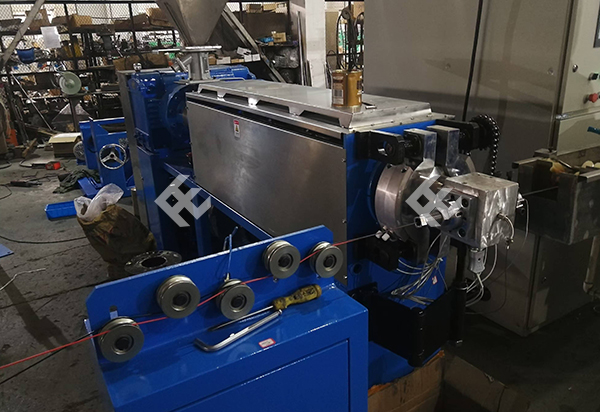

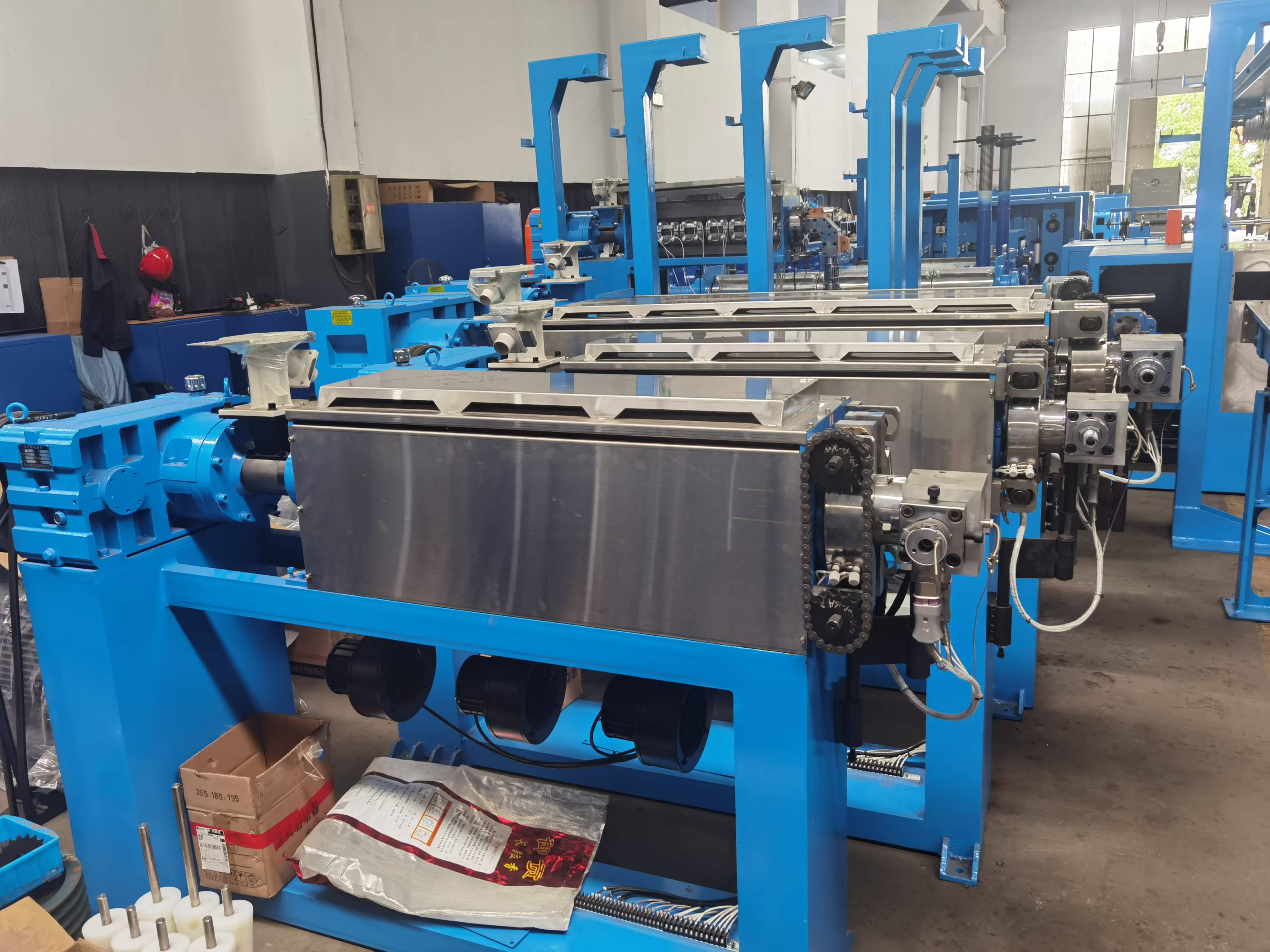

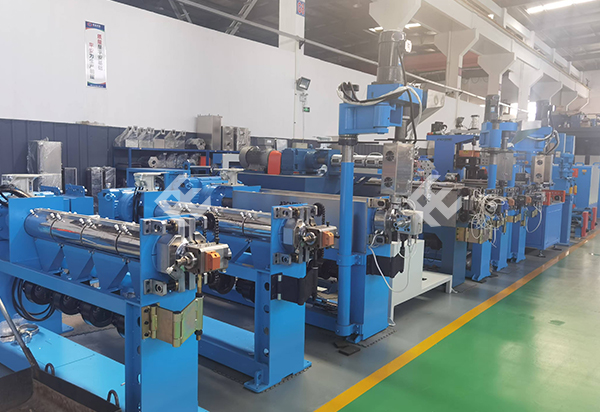

Wire Insulation Extrusion Line
Brief Introduction
It’s used for the insulation of wire &cable with PVC, LDPE, NYLON, TPU. Also it can be equipment with triple coextrusion crosshead and double layer.
Technical Parameters
| Model | Screw Parameters | Extrusion Capacity | Power(kw) | After | Pay-off Unit | ||||||
| Dia. (mm) | L/D Ratio | Rotation Speed (r/min) | PVC | LDPE | PP | Main Motor Power | Total Power | Finished Wire Dia.(mm) | Bobbin Dia. (mm) | Power (kw) | |
| FJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | 5.5 | 21 | 0.2-1 | 300/400 | 2.2 |
| FJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | 7.5 | 24 | 0.4-3 | 300/500 | 3.7 |
| FJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | 11 | 28 | 0.8-5 | 400/630 | 3.7 |
| FJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | 18.5 | 42 | 1-8 | 500/630 | 3.7 |
| FJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | 22-37 | 50 | 2-12 | 500/630 | |
| FJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 96 | 30-55 | 65 | 3-25 | 500/630 | |
| FJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | 37-75 | 75-113 | 5-35 | 630/800 | |
| FJX-100 Extrusion | Φ100 | 25:1 | 85 | 280 | 190 | 150 | 75-90 | 134-149 | 10-60 | 800/2000 | 7.5 |
| FJX-120 Extrusion | Φ120 | 25:1 | 80 | 380 | 260 | 200 | 90-132 | 176-208 | 12-70 | 1250/2500 | 11 |
| FJX-150 Extrusion | Φ150 | 25:1 | 60 | 650 | 400 | 350 | 110-160 | 205-255 | 15-80 | 1600/3150 | 11 |
| Model | Haul-off Unit | Accumulator Length (m) | Take-up Unit | Line Speed (m/min) | ||
| Type | Power (kw) | Bobbin Dia. (mm) | Power (kw) | |||
| FJX-30 Extrusion | Capstan Type | 1.5 | 220 | 400/500 | 2.2 | 10-650 |
| FJX-40 Extrusion | Capstan Type | 2.2 | 220 | 400/630 | 2.2 | 10-650 |
| FJX-50 Extrusion | Capstan Type | 2.2 | 220 | 400/630 | 2.2 | 10-650 |
| FJX-60 Extrusion | Capstan Type | 3.7 | 220 | 500/630 | 2.2 | 10-650 |
| FJX-70 Extrusion | Capstan Type | 3.7 | 220 | 630/800 | 3.7 | 10-350 |
| FJX-80 Extrusion | Capstan Type Caterpillar Type | 5.5 | 220 | 800/1000 | 3.7 | 10-350 |
| FJX-90 Extrusion | Capstan Type & Caterpillar Type | 5.5 | 220 | 630/1250 | 5.5 | 10-250 |
| FJX-100 Extrusion | Caterpillar Type | 11 | 800/2000 | 7.5 | 10-150 | |
| FJX-120 Extrusion | Caterpillar Type | 11 | 1250/2500 | 11 | 10-100 | |
| FJX-150 Extrusion | Caterpillar Type | 15 | 1600/3150 | 11 | 10-60 | |
