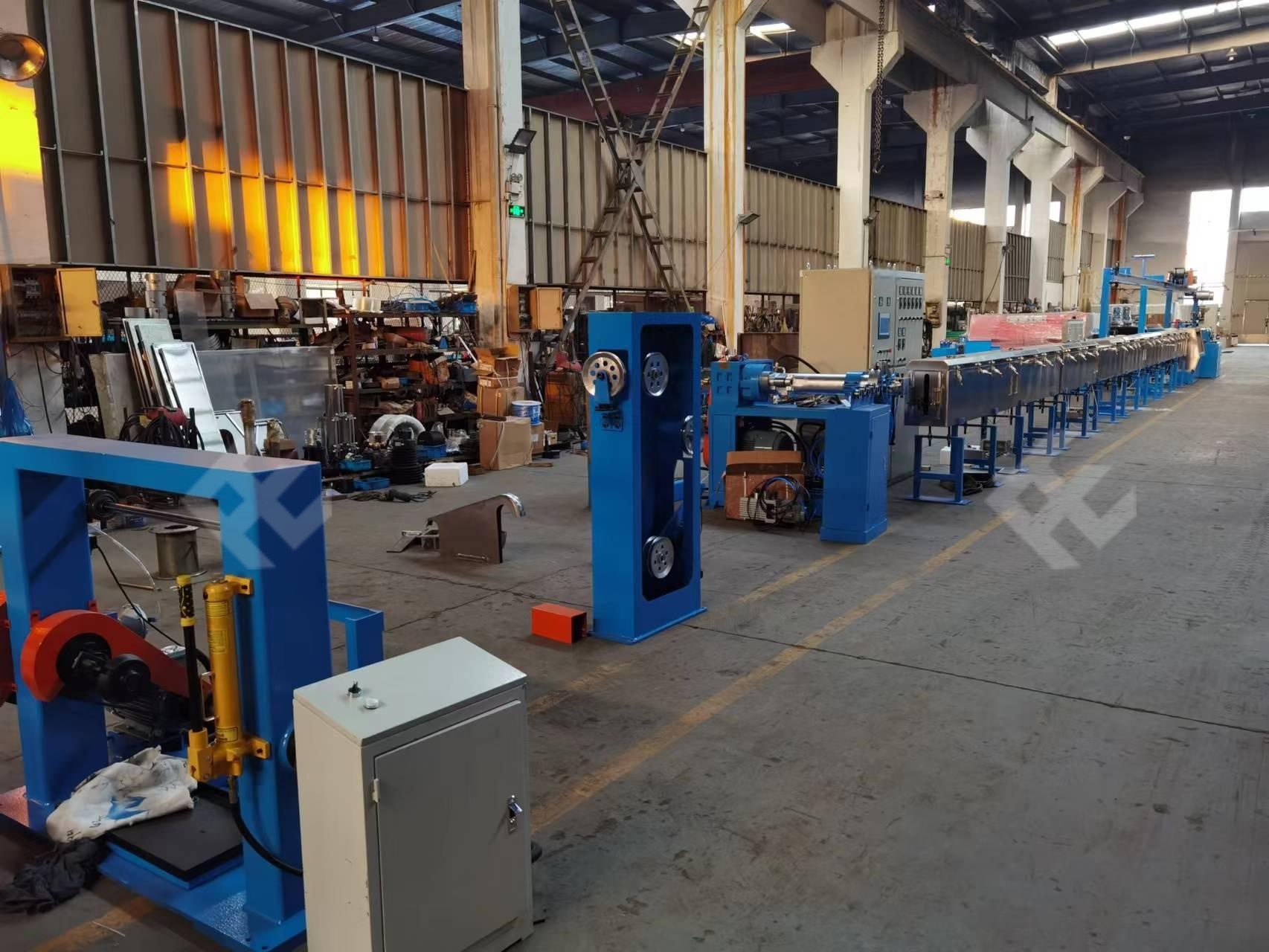

Silicon Rubber Extrusion Line
Detailed Information
Features:
1. PLC+touching screen control with all period of adjusting and monitoring parameter of whole production line.
2. Specially used of screw, barrel, crosshead and dies for silicon rubber to prevent inner vulcanization.
3. Silicon rubber used the avoiding adjusting die-head, water cooling system automatic control or manual control
4. Equipped with high precision testing feedback system, which ensuring accurate wire diameter to reduce costs.
Technical Parameters
| Model | F-45 | F-65 | F-90 | F-120 |
Main Power (kw) | 11 | 22 | 37 | 45 |
Extrusion Output (kg/h) | 30 | 80 | 135 | 260 |
| Diameter (mm) | Φ45 | Φ65 | Φ90 | Φ120 |
| L/D Ratio | 12:1 | 14:1 | 14:1 | 14:1 |
| Pay-off Bobbin (mm) | Φ300-Φ400 | Φ400-Φ630 | Φ800-Φ1000 | Φ1000-Φ2000 |
| Conductor Specification (mm) | Φ0.2-Φ3.0 | Φ1.5-Φ6.0 | Φ2.0-Φ10 | Φ5.0-Φ15 |
| Finished Product Size (mm) | Φ0.8-Φ5.0 | Φ1.8-Φ8.0 | Φ3.0-Φ12 | Φ8.0-Φ20 |

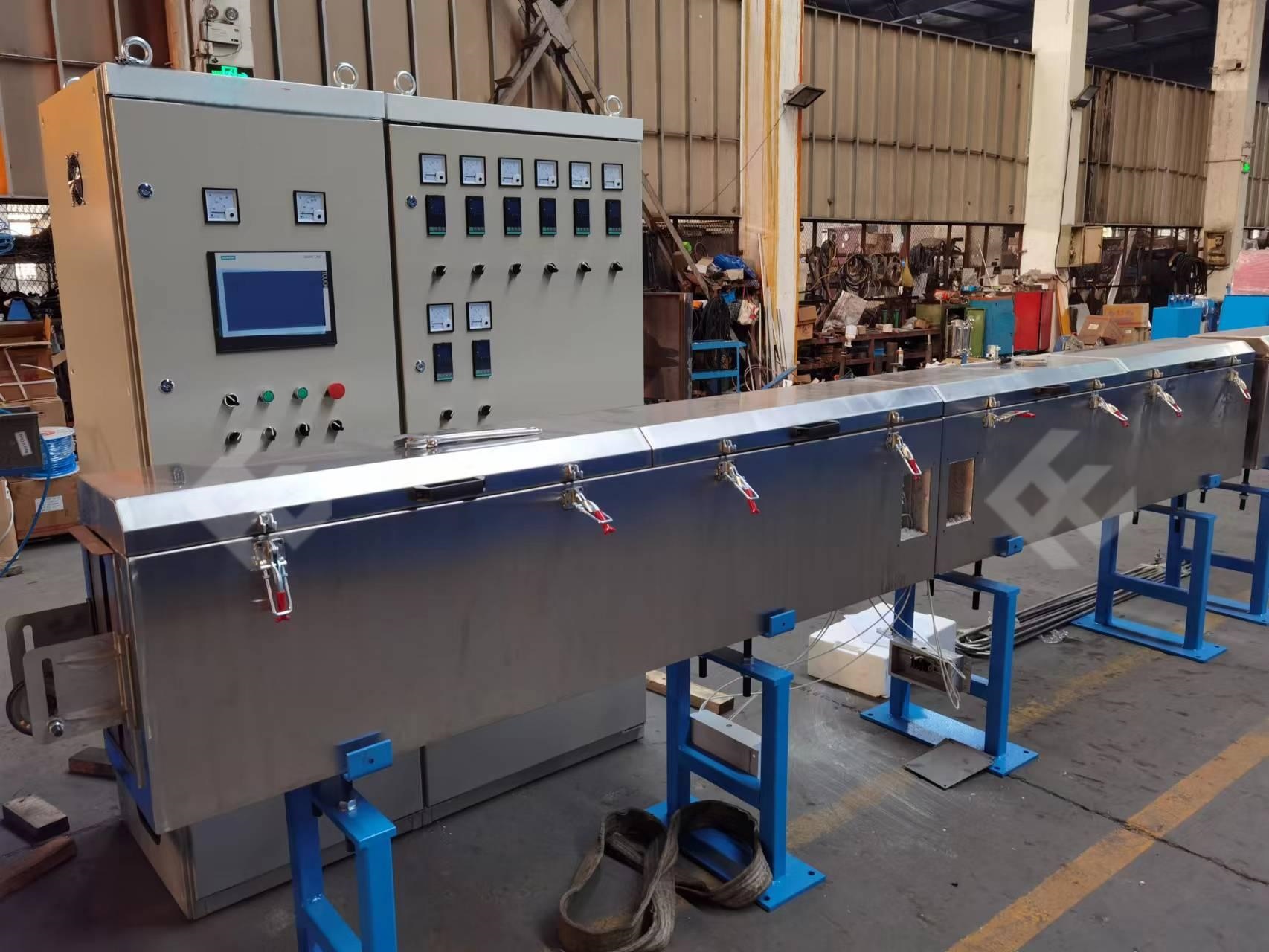

| Vulcanaztion Tank Length (m) | 12 | 16 | 24 | 24 |
| Heating Power | 3section36kw | 4section48kw | 6section72kw | 9section84kw |
| Traction Motor(kw) | 2.2 | 4 | 7.5 | 11 |
| Line Speed (m/min) | 10-200 | 10-200 | 4-40 | 4-40 |
| Take-up Bobbin (mm) | Φ400-Φ500 | Φ400-Φ630 | Φ1250-Φ1600 | Φ1250-Φ2000 |
